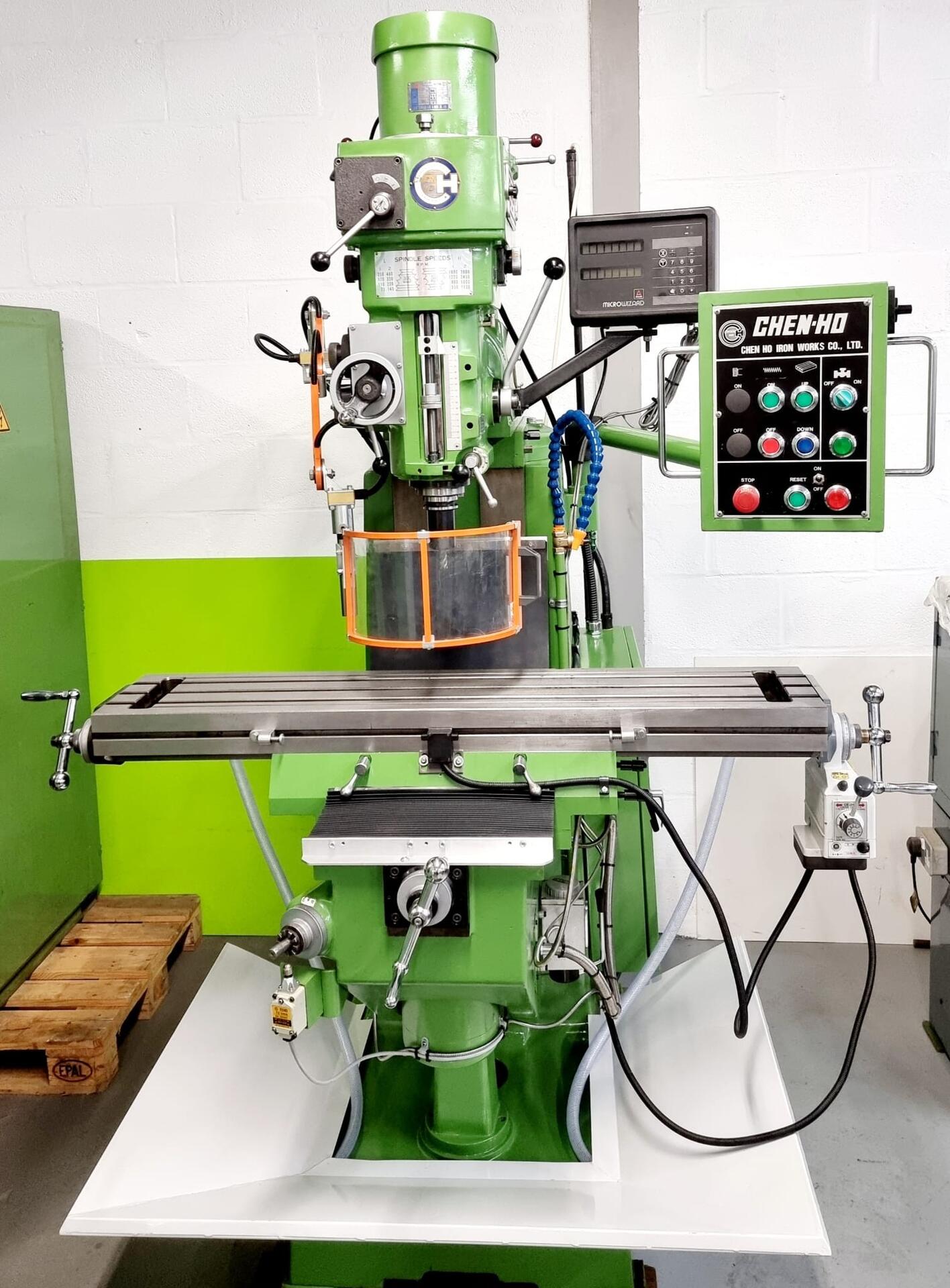

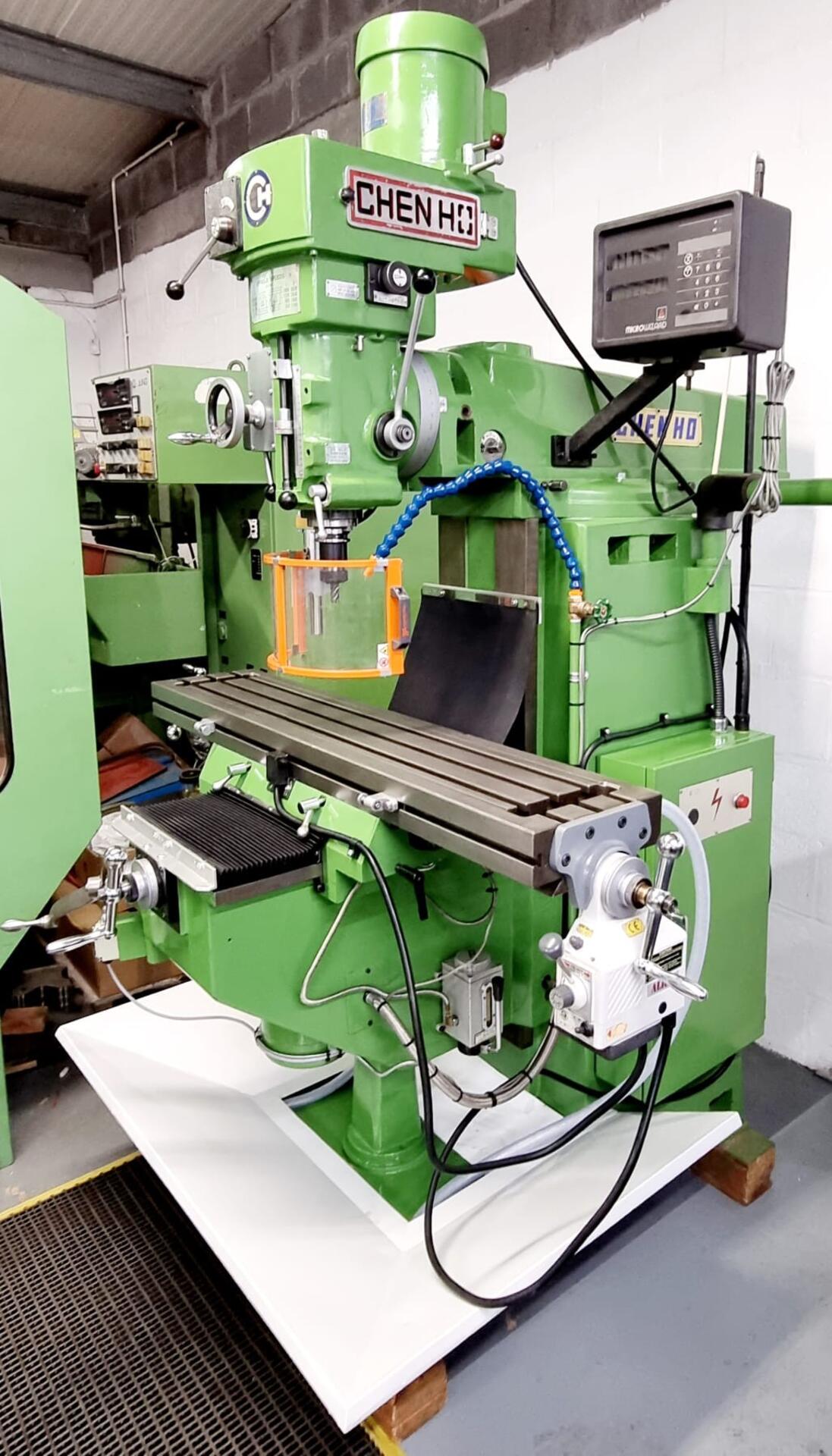

CHEN-HO Heavy Duty Turret Mill

Code: ST3948

CHEN-HO Heavy Duty Turret Mill

Model:                          CH-2BA

Year:                            2007

Table Size:                    325 x 1300mm

'X' axis Travel:               1000mm

'Y' axis Travel:               390mm

''Z axis Travel:               450mm

Spindle Taper:               40 INT

Spindle Speeds:            3600 RPM

This machine has been refurbished and tested and is in excellent condition. Minimal wear on ways, must be seen to appreciate.

Power: 3 Phase - 420V

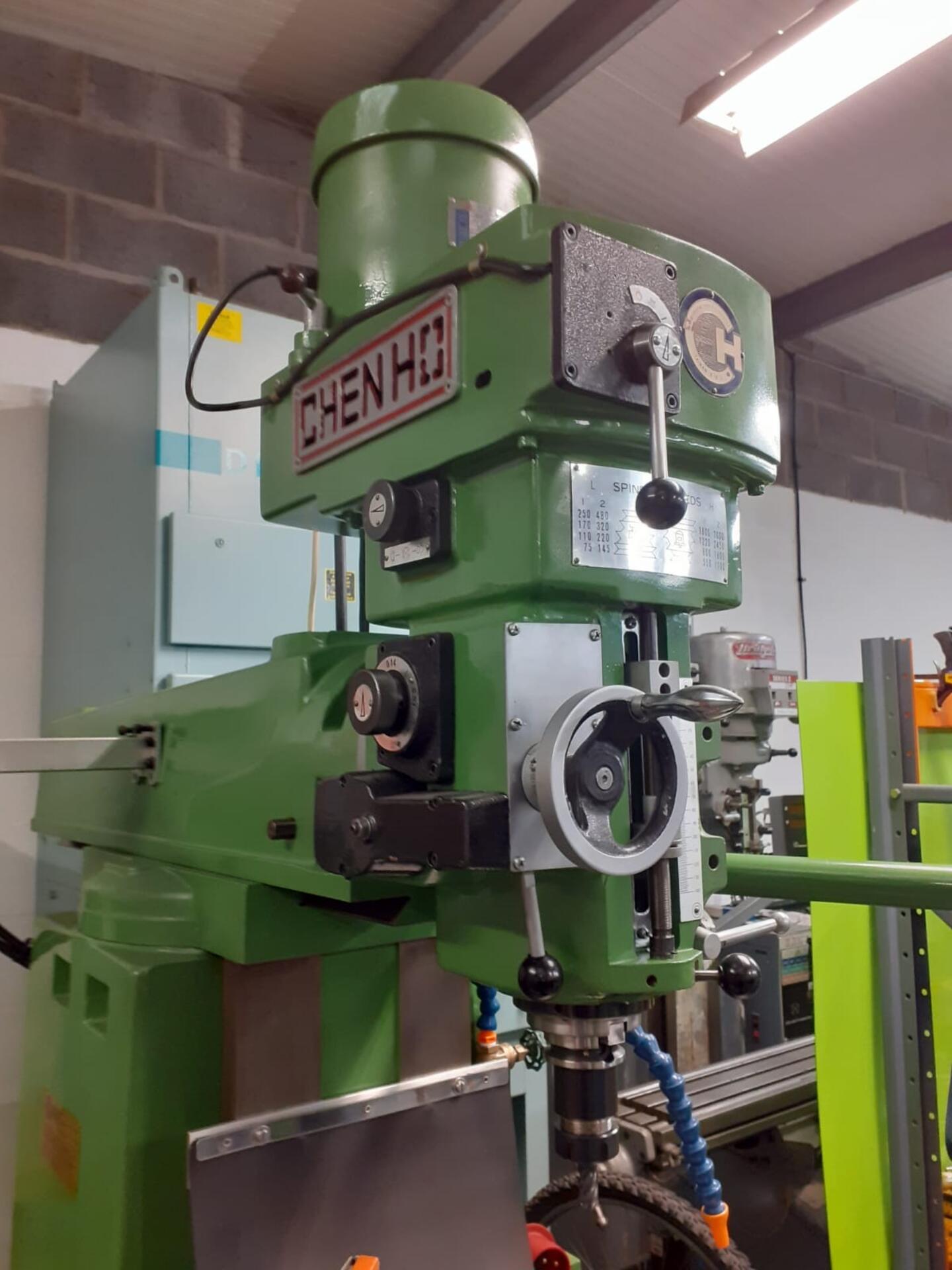

Combination Belt and geared driven Spindle.
Various selectable Z axis Quill feeds for boring and drilling.

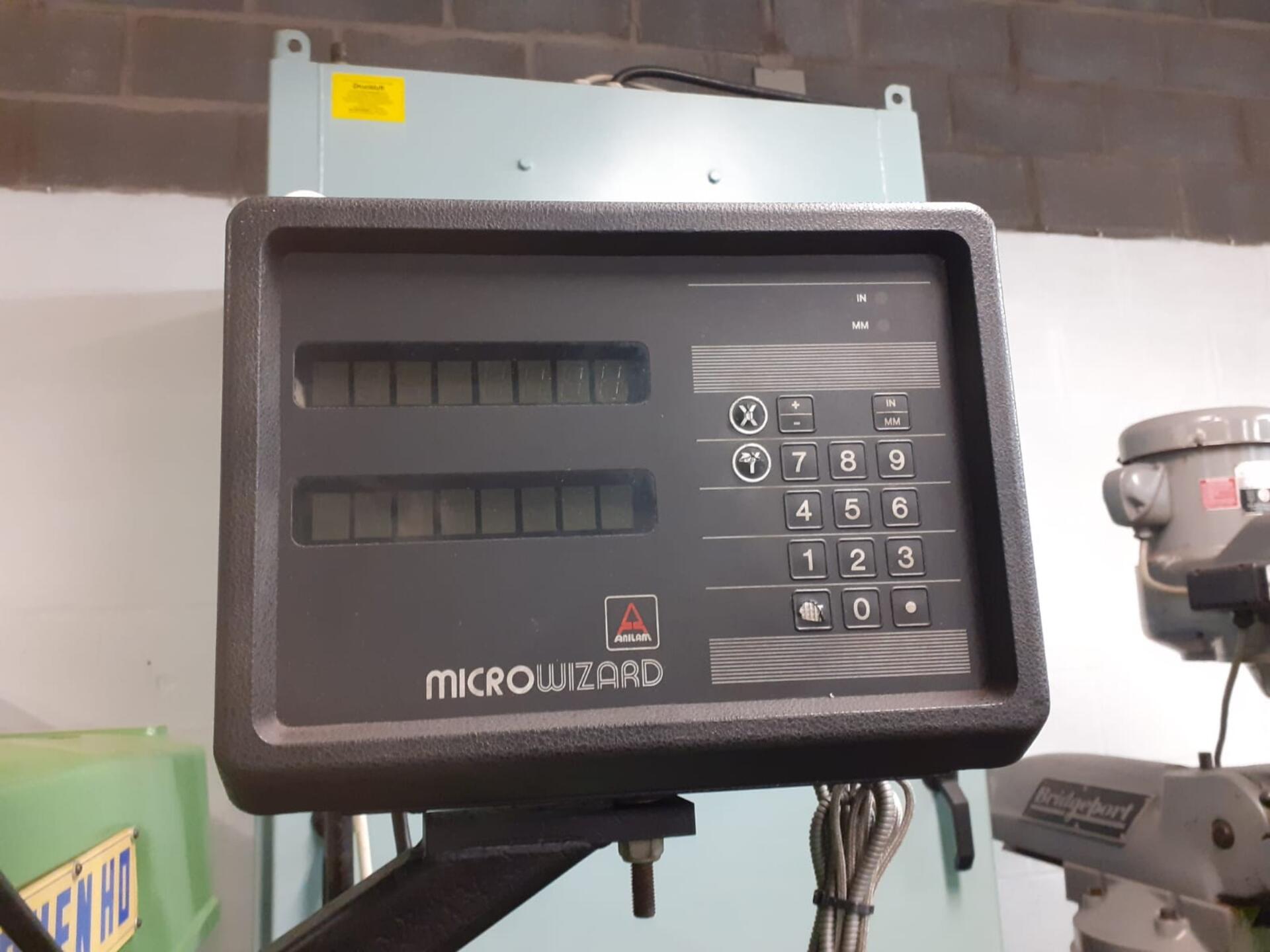

Digital readout - X & Y axis.
Built in Z axis power drive for ease of lifting or lowering table. ALIGN Power X Axis feed.
Coolant system and Drip tray included.
Machine fitted with integrated safety guarding system.

Other items included with machine.
Small Chipper, vice, drill chuck. No collets.

Weight of machine approx 1700kg
