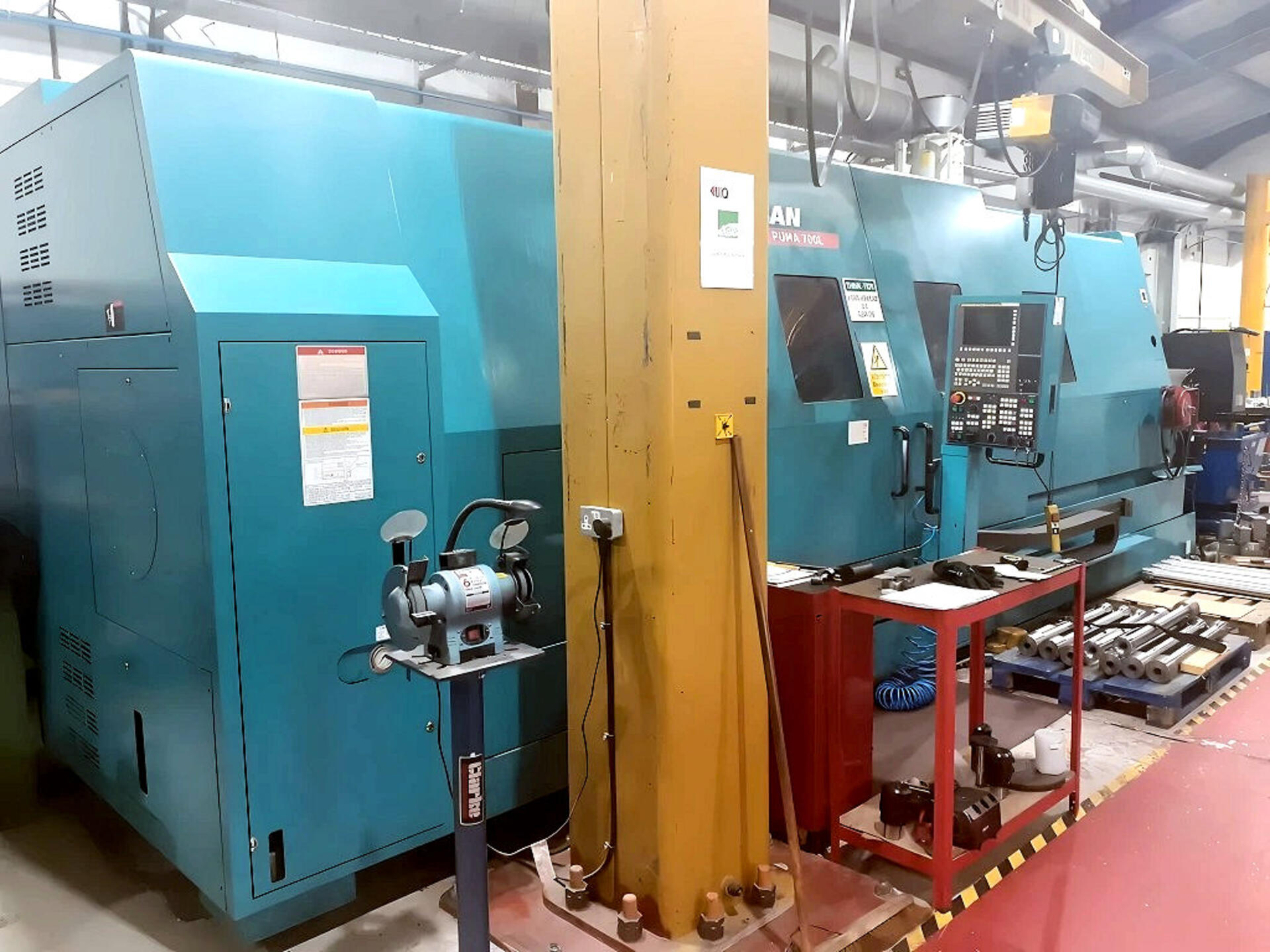

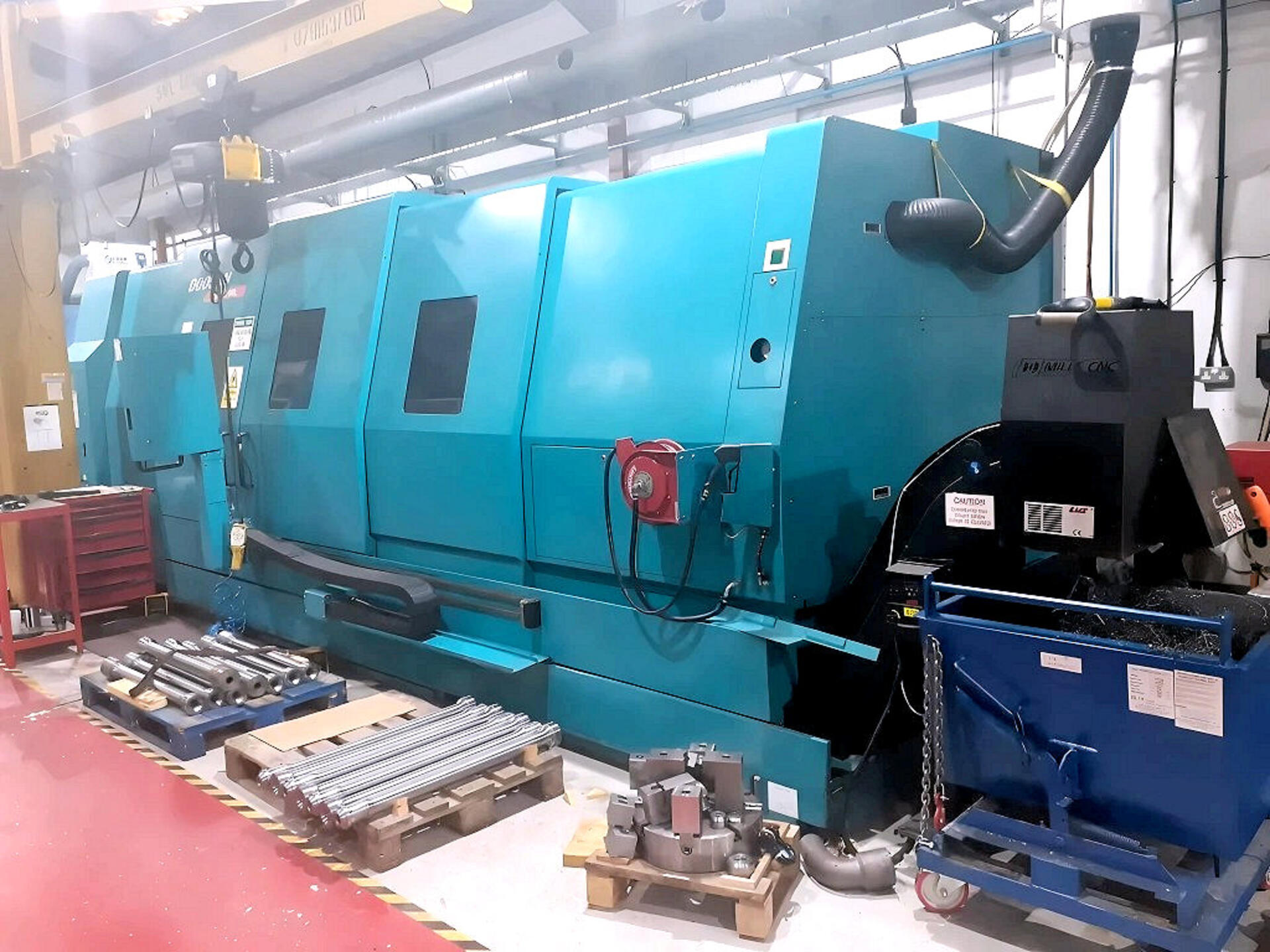

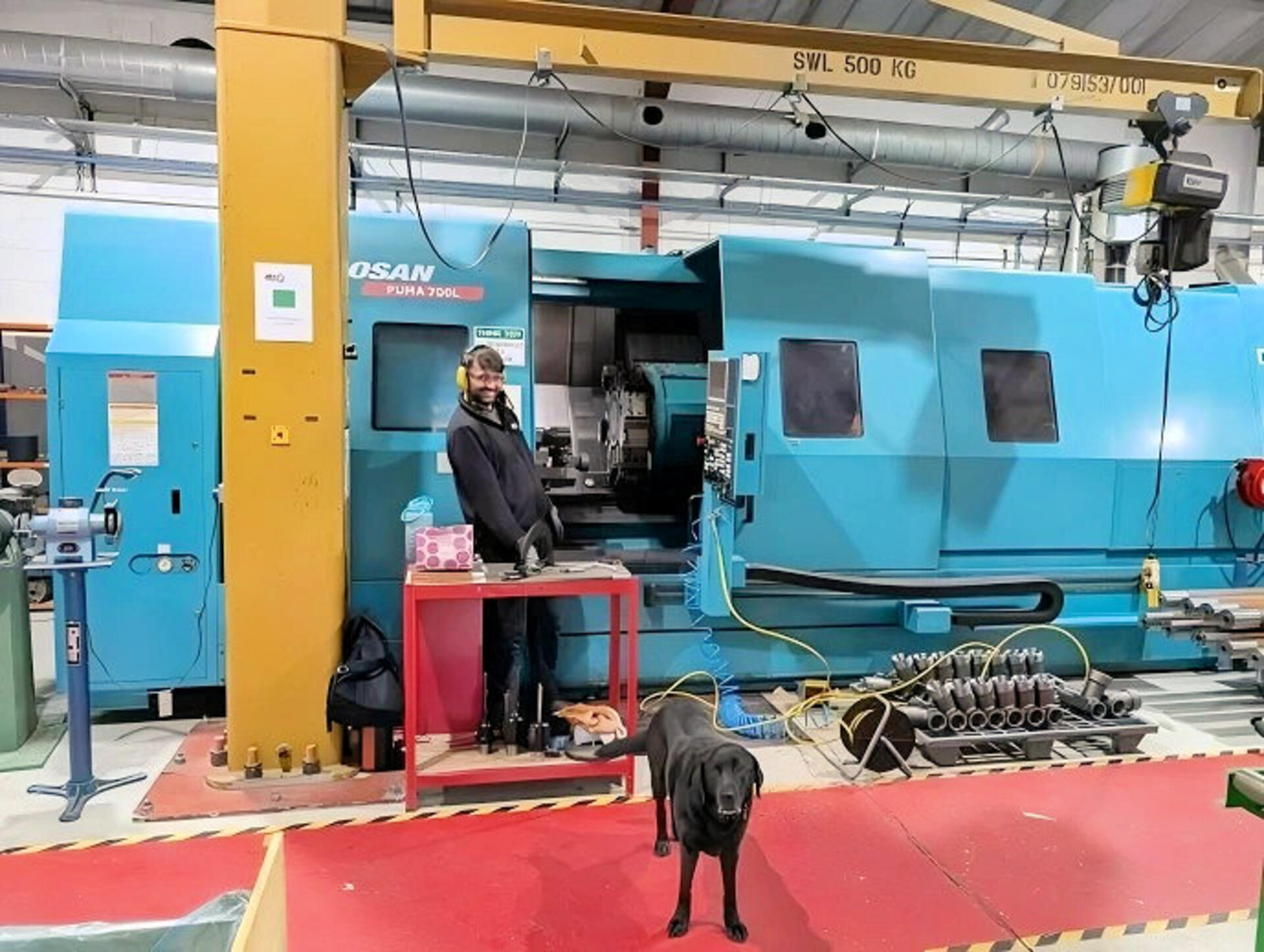

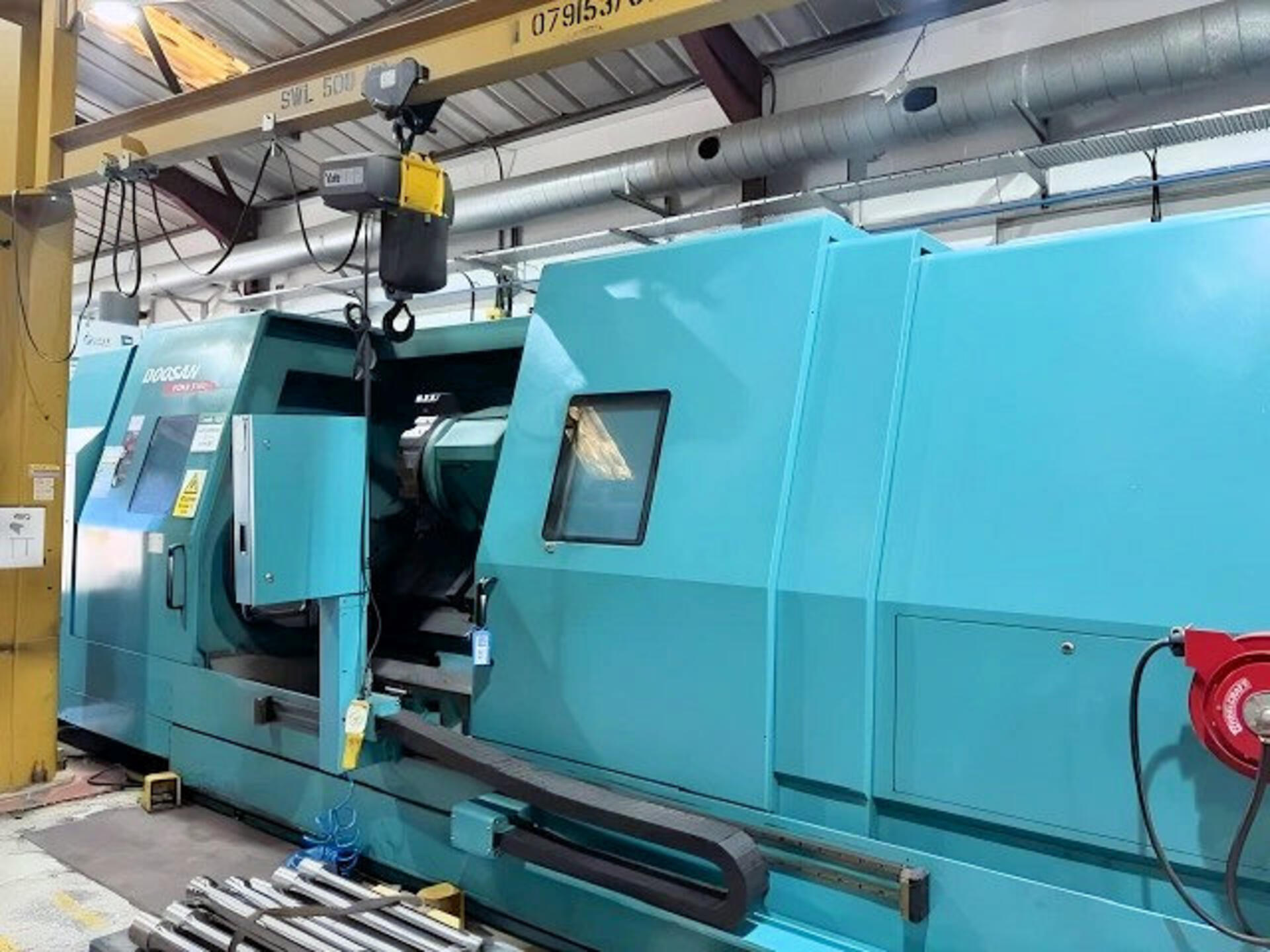

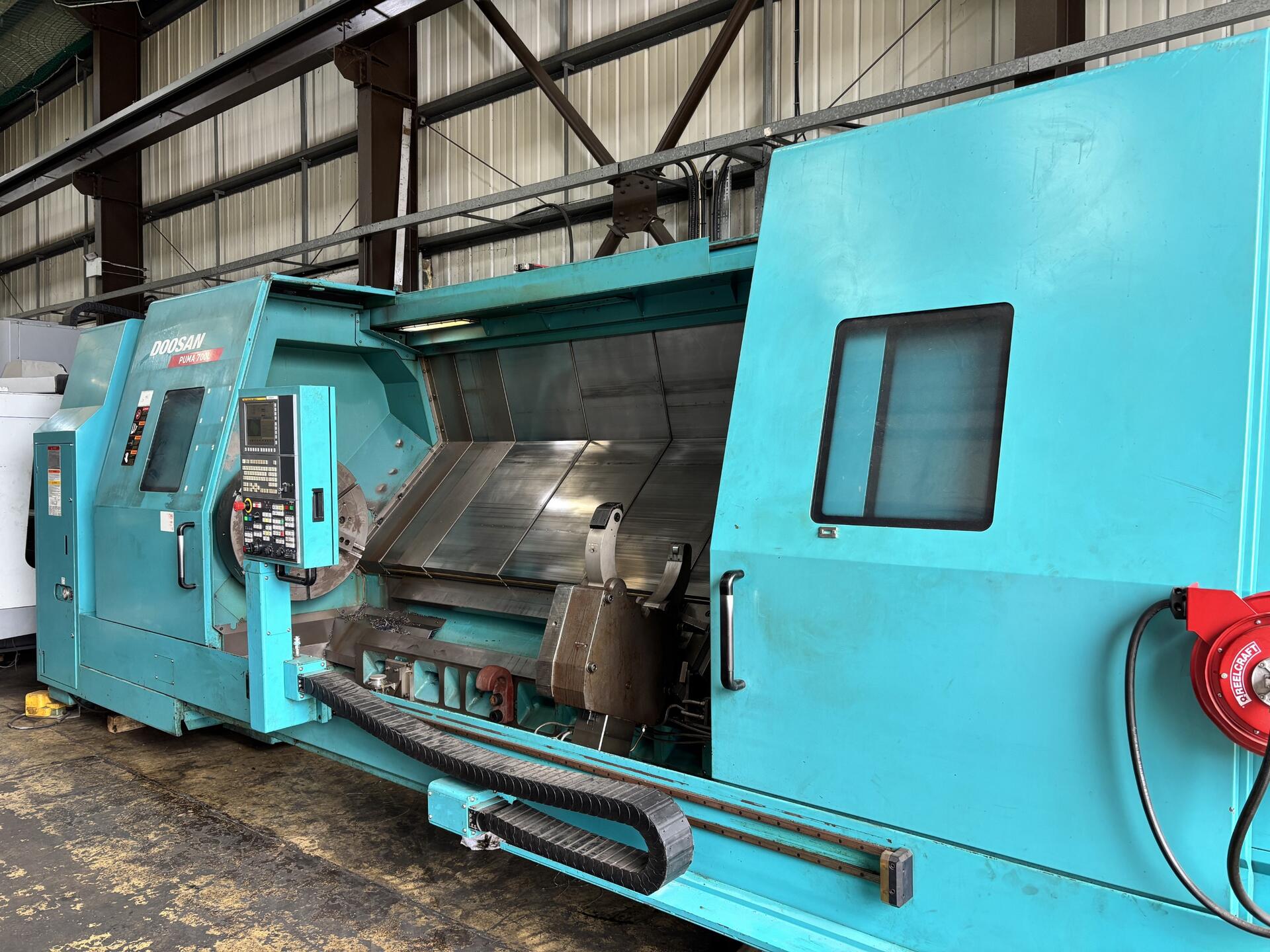

Doosan Puma 700 L CNC Lathe

Code: ST3962

Doosan Puma Heavy Duty CNC Lathe

Model:                                      700 L

Year:                                        2014 - October

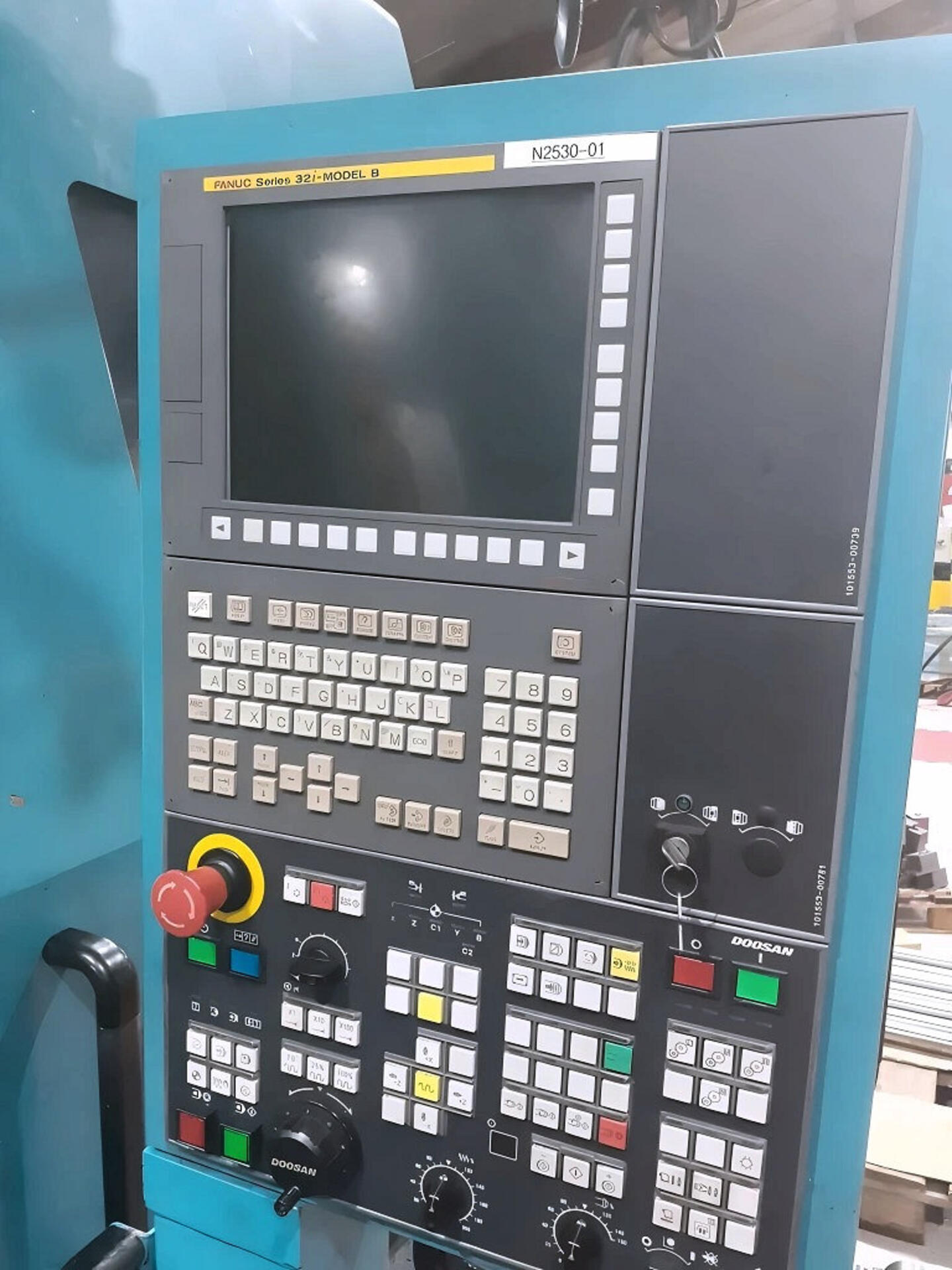

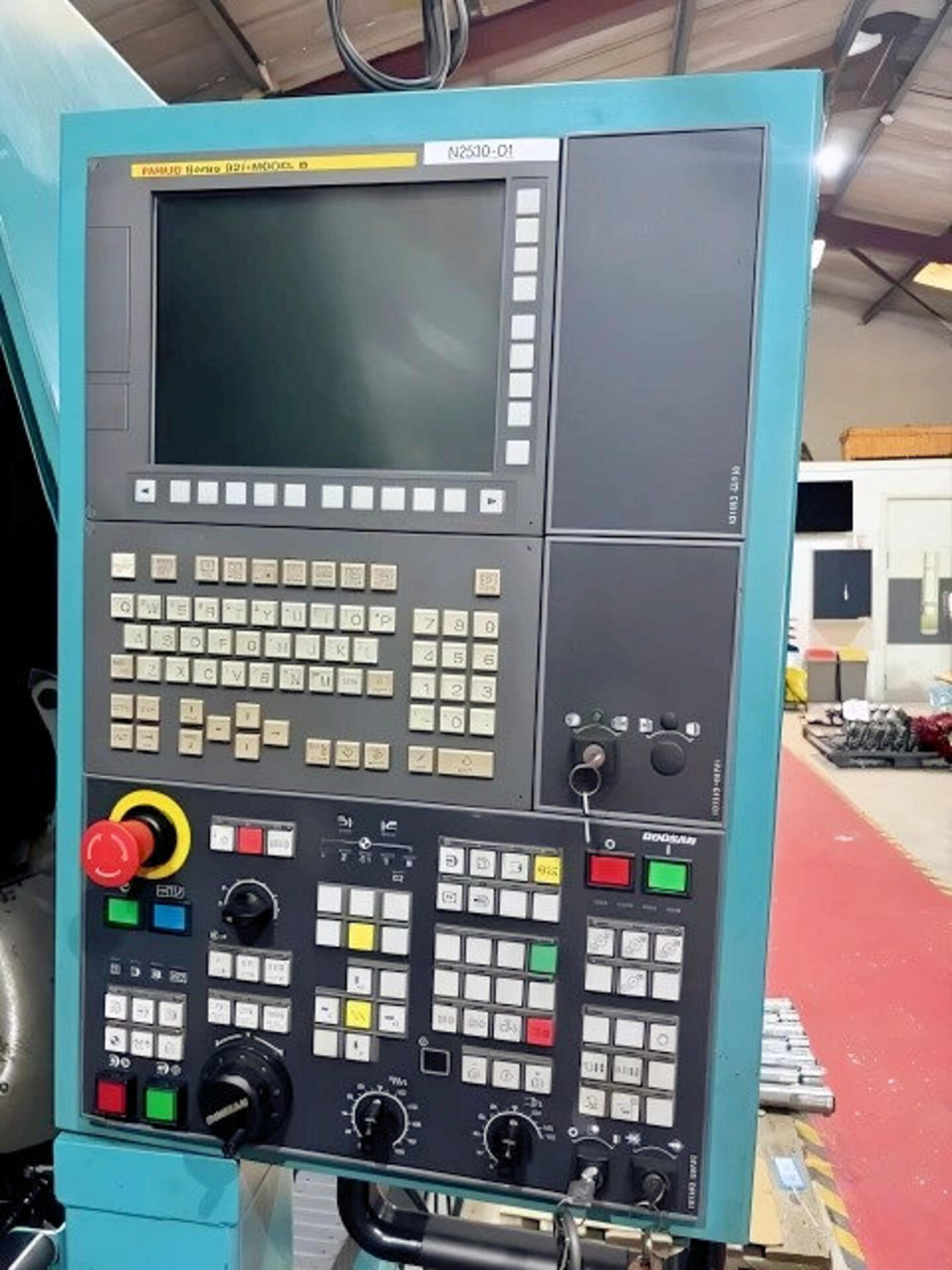

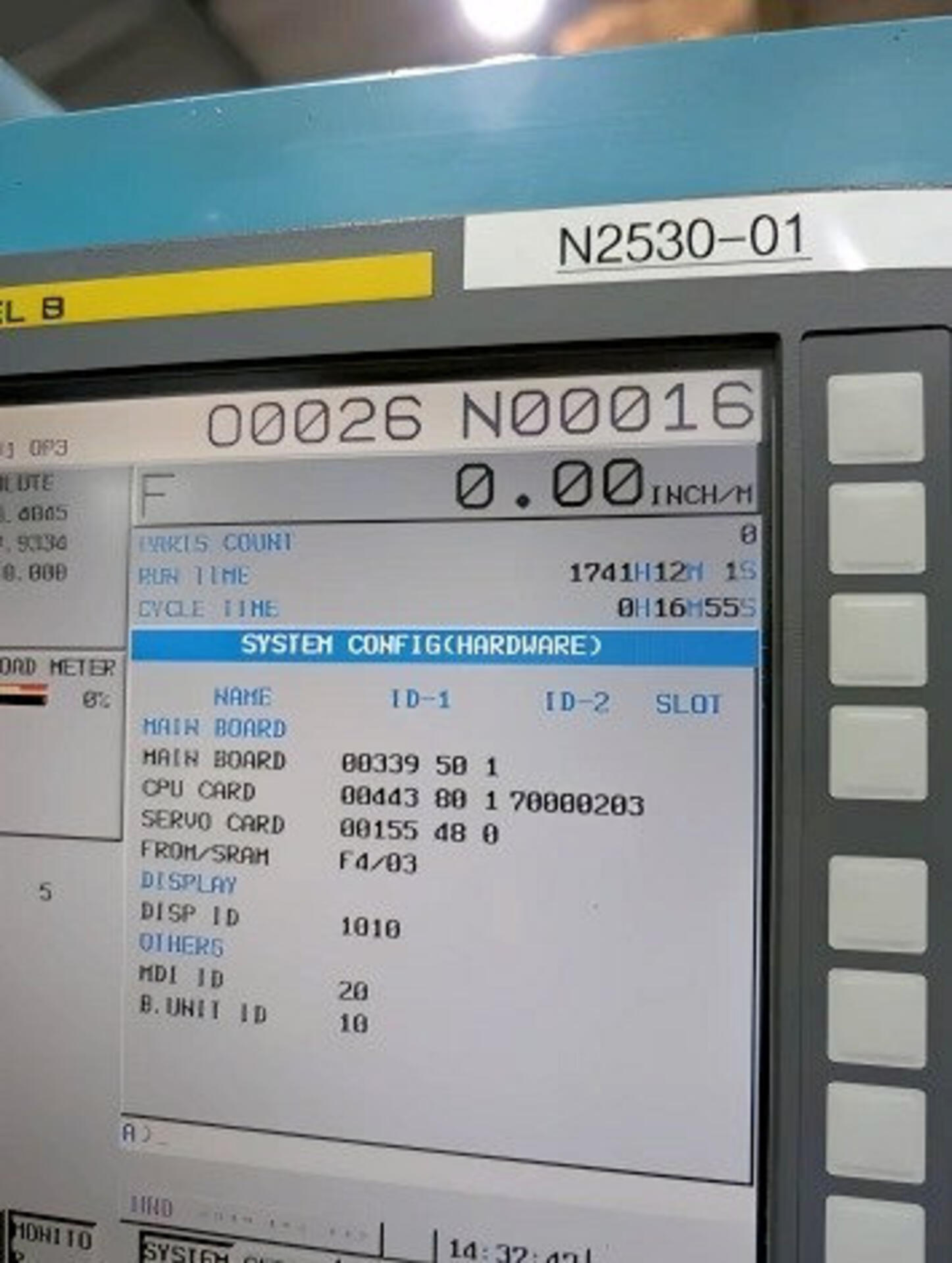

Control:                                     Fanuc 31i – Model B

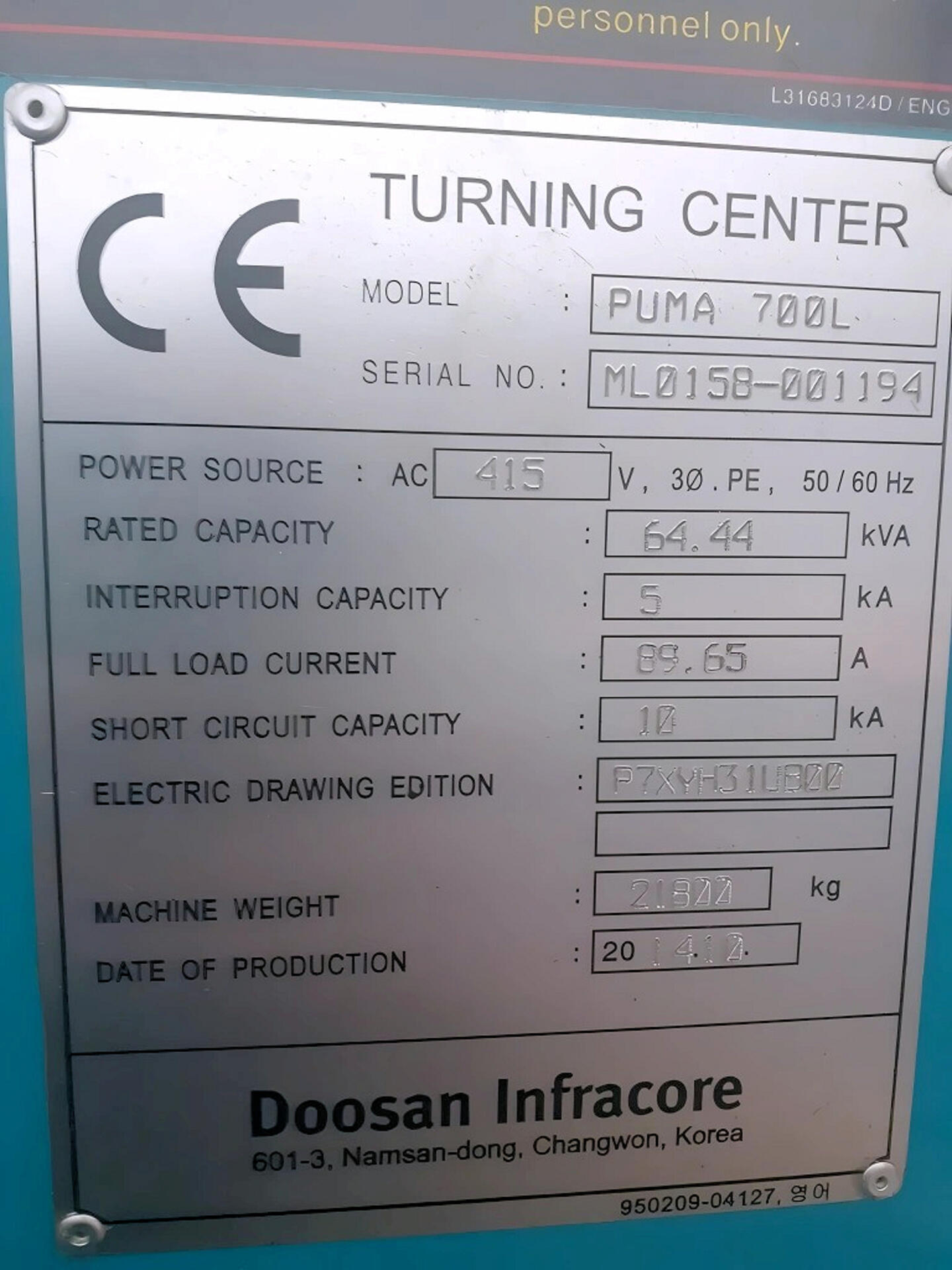

Serial No:                                 ML015800194

Swing over bed:                        1030mm

Swing over saddle:                    800mm

Maximum turning diameter:        900mm

Maximum turning length:            3200mm

Bar Capacity:                            164mm

Spindle speed:                          1500 rpm

spindle power:                           45/37KW

X axis Travel :                           470mm

Z axis Travel :                           3235mm

Spindle Nose:                           A1-15

OD tool size:                             32 x 32mm

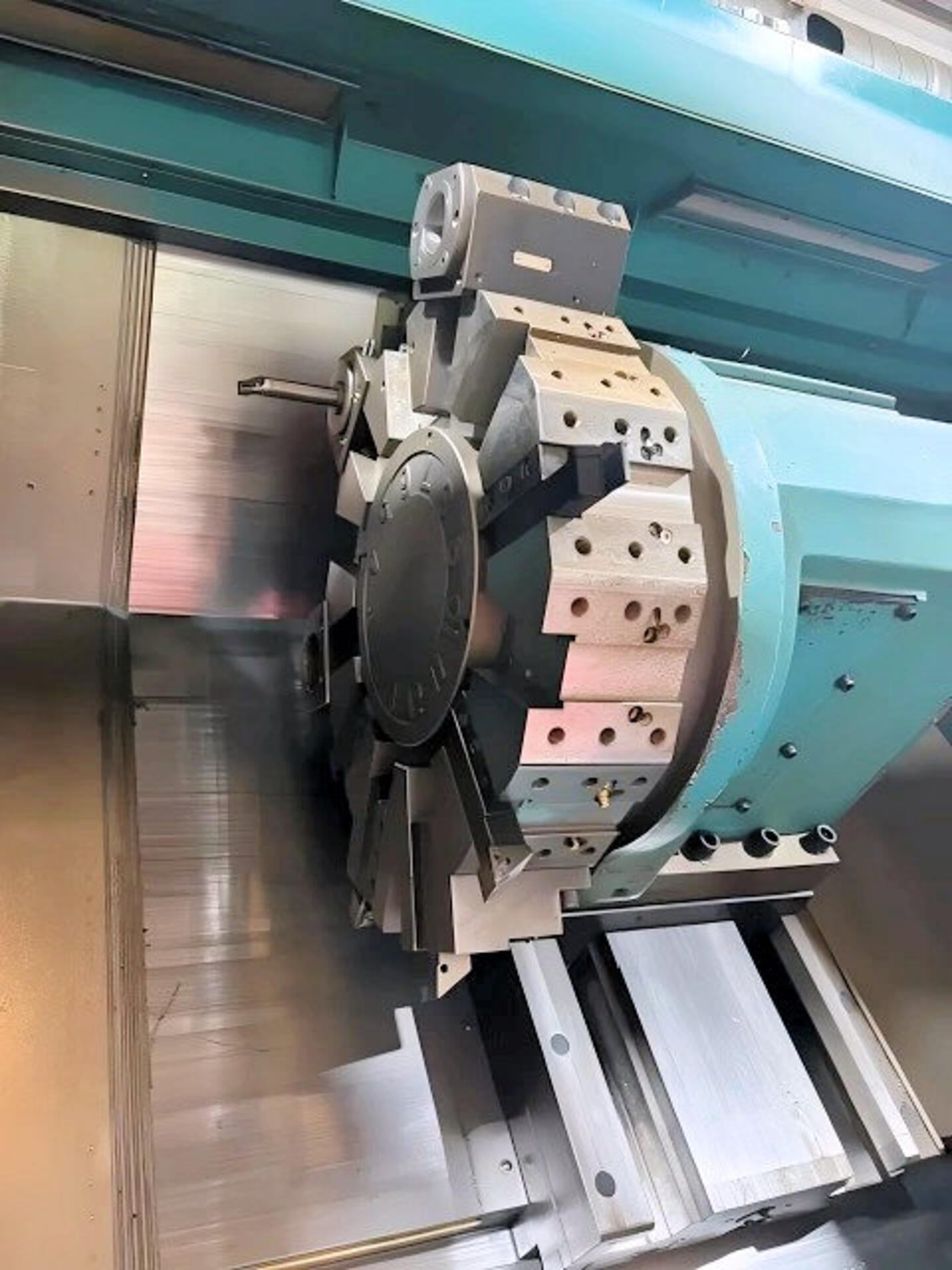

12 station turret

Fanuc 32i control

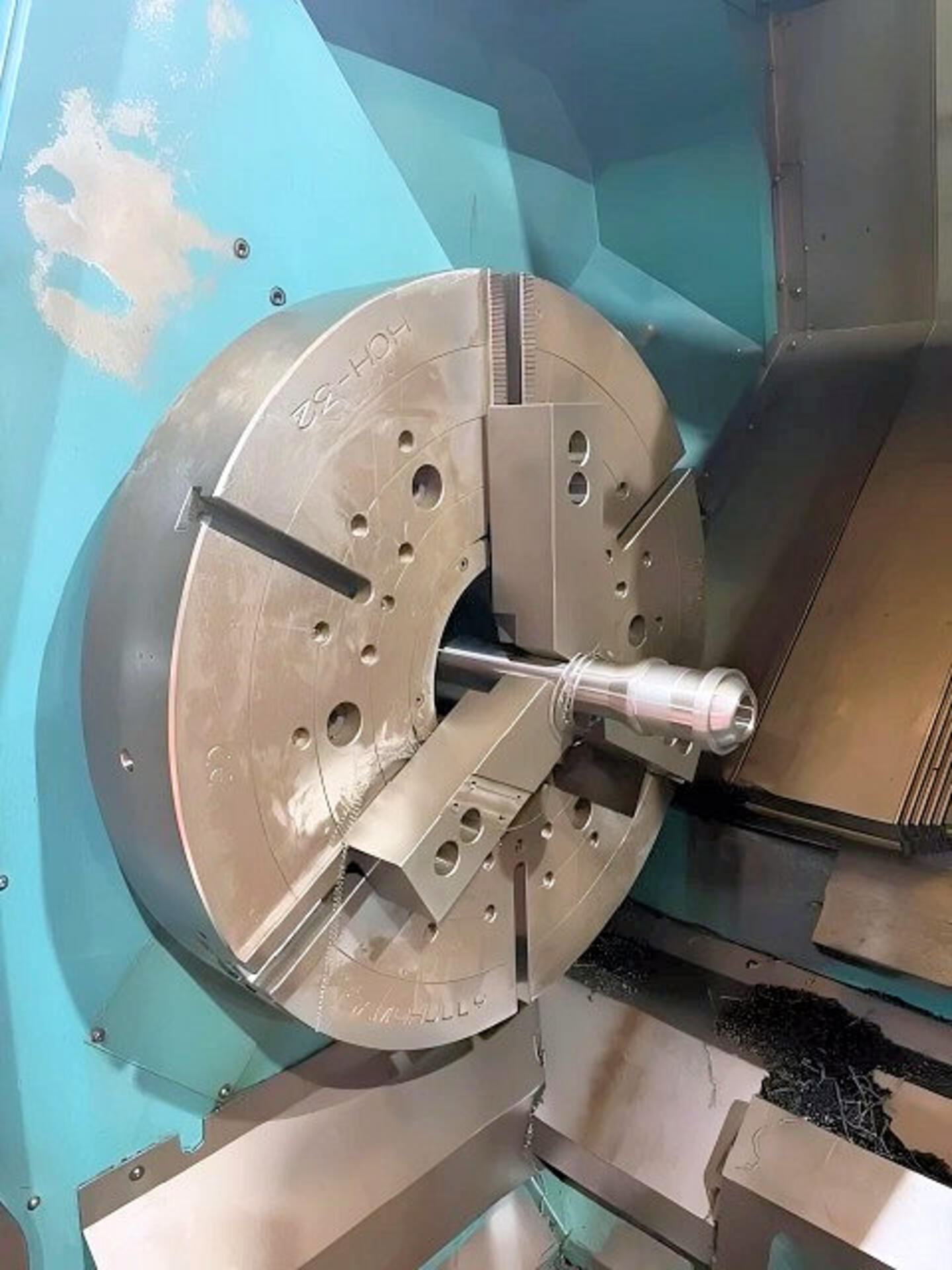

800mm 3 jaw chuck (32”)

Tailstock Body 3135mm

Tailstock Quill Stroke 150mm

Tailstock Quill Diameter 160mm

Tailstock Taper MT #6

Tool setter

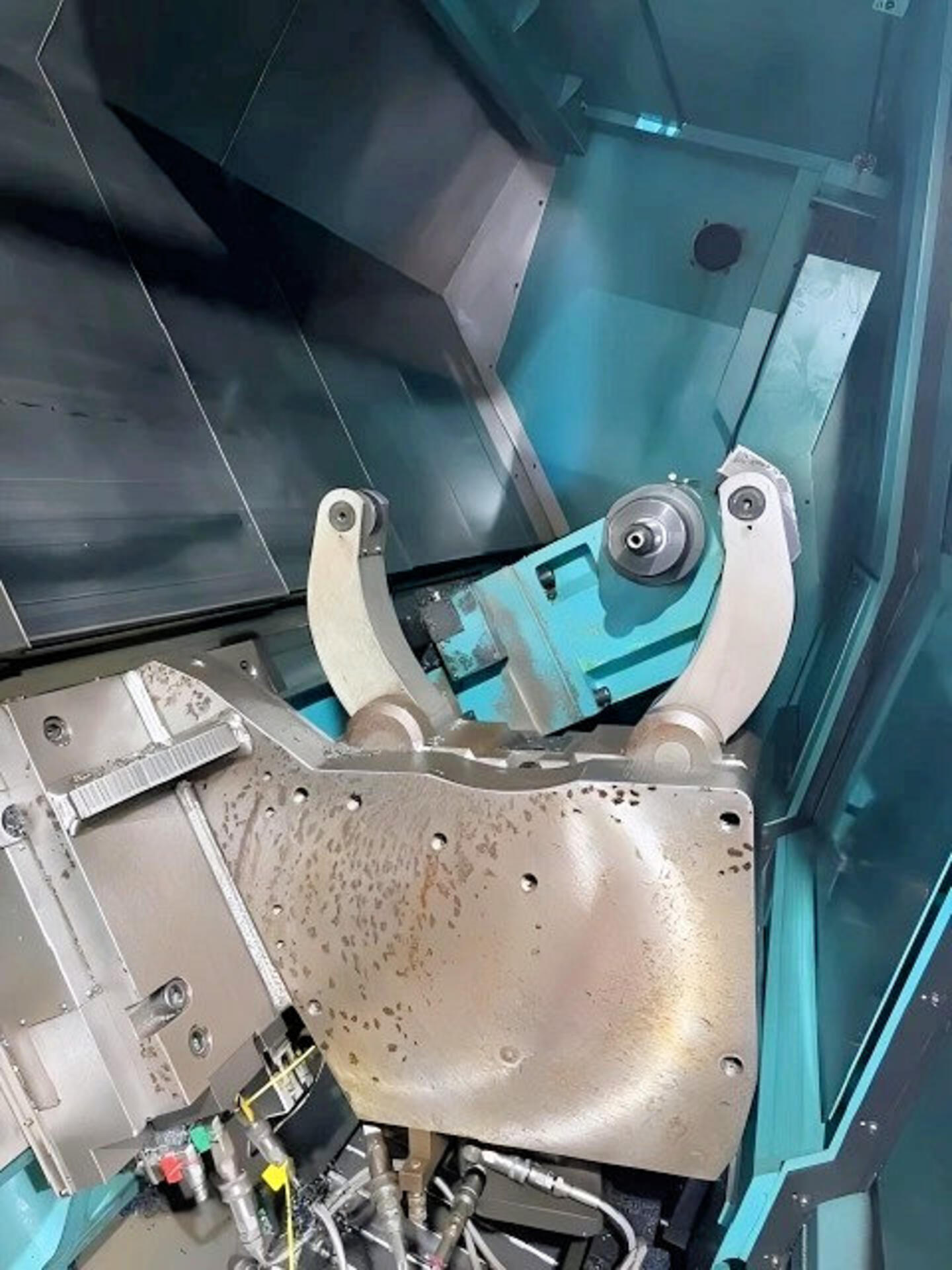

Hydraulic steady

Swarf conveyor

Machine Dimension  7360 x 2770 x 2780mm

Machine Weight 21800kg
