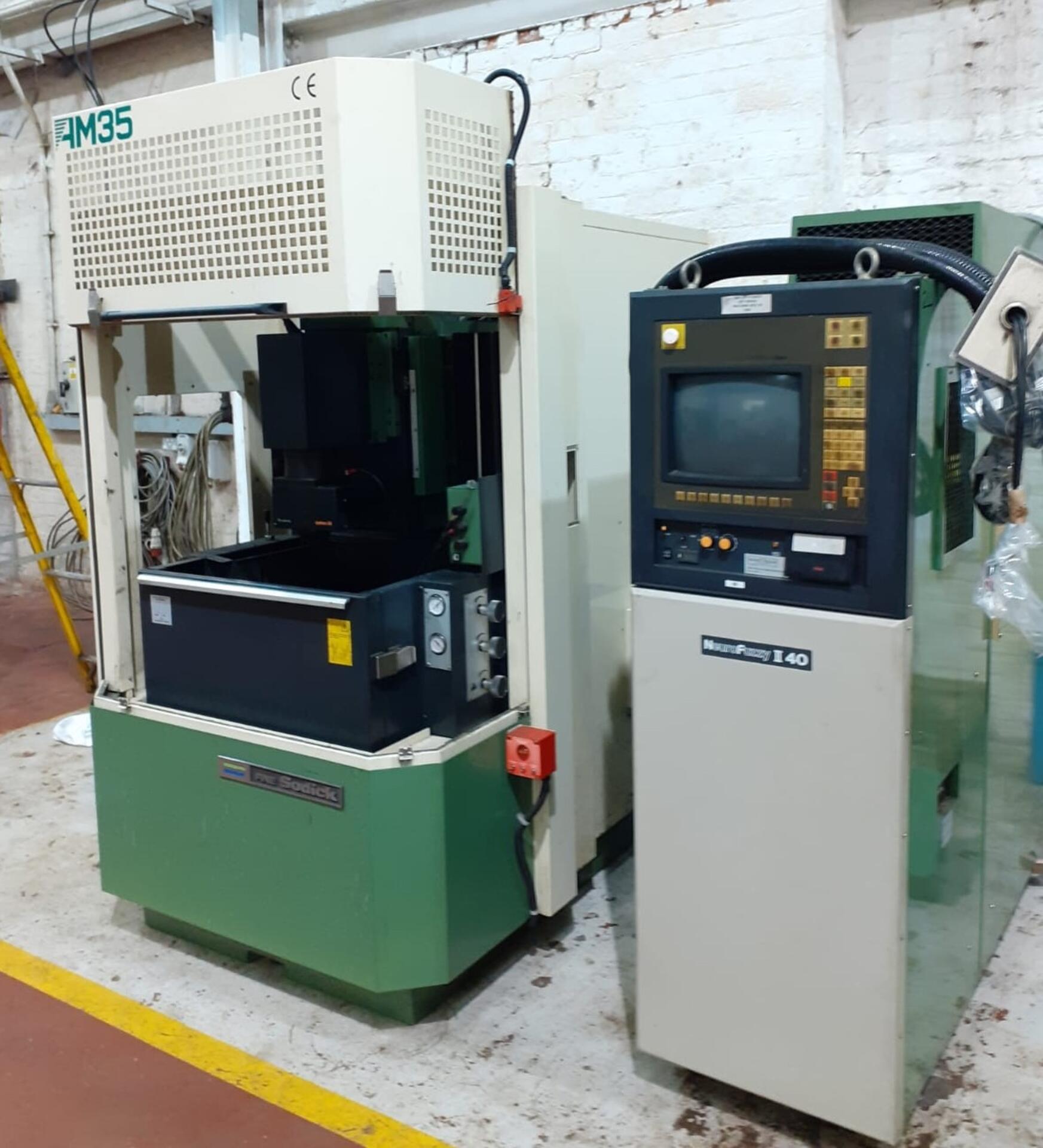

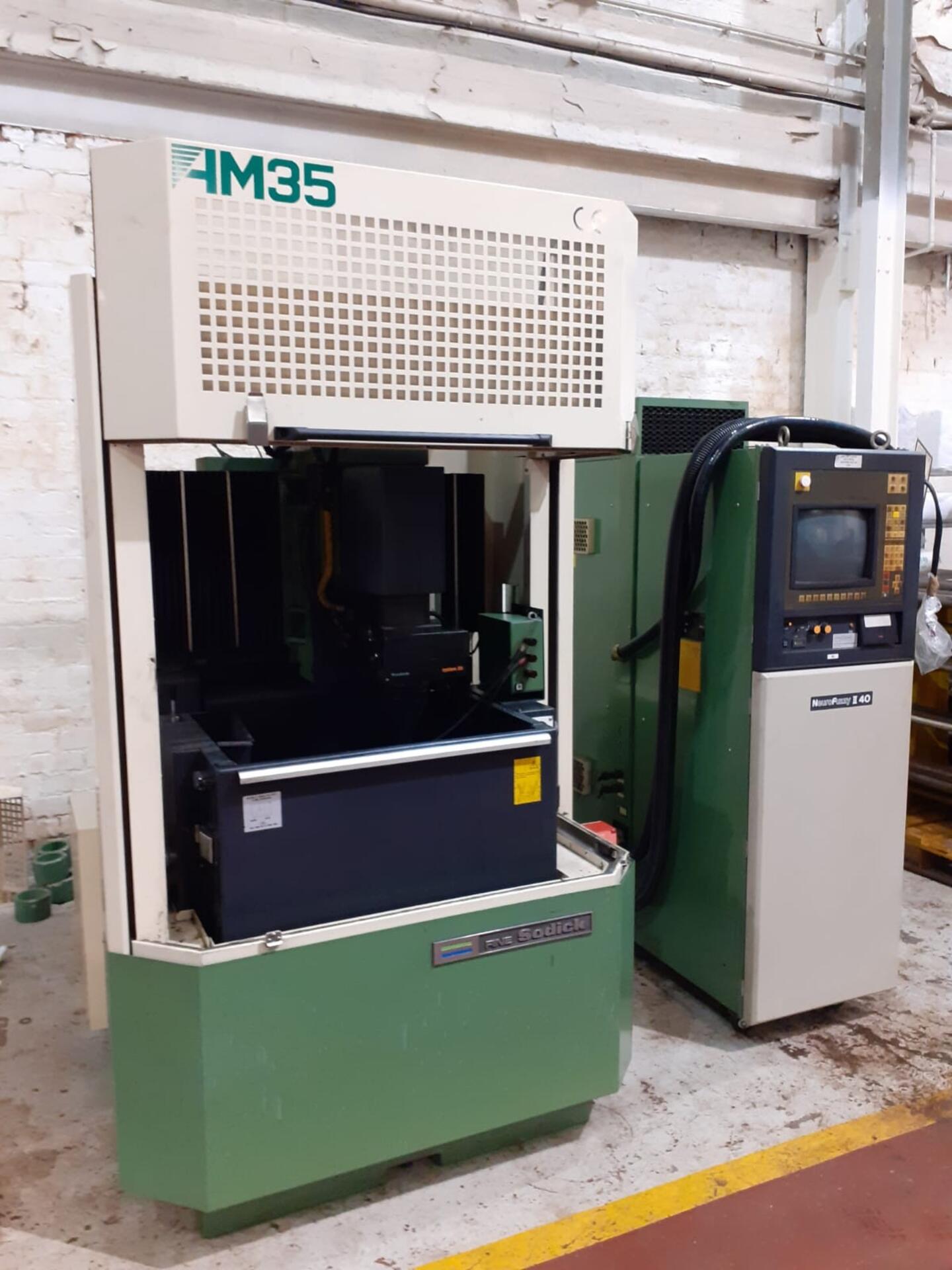

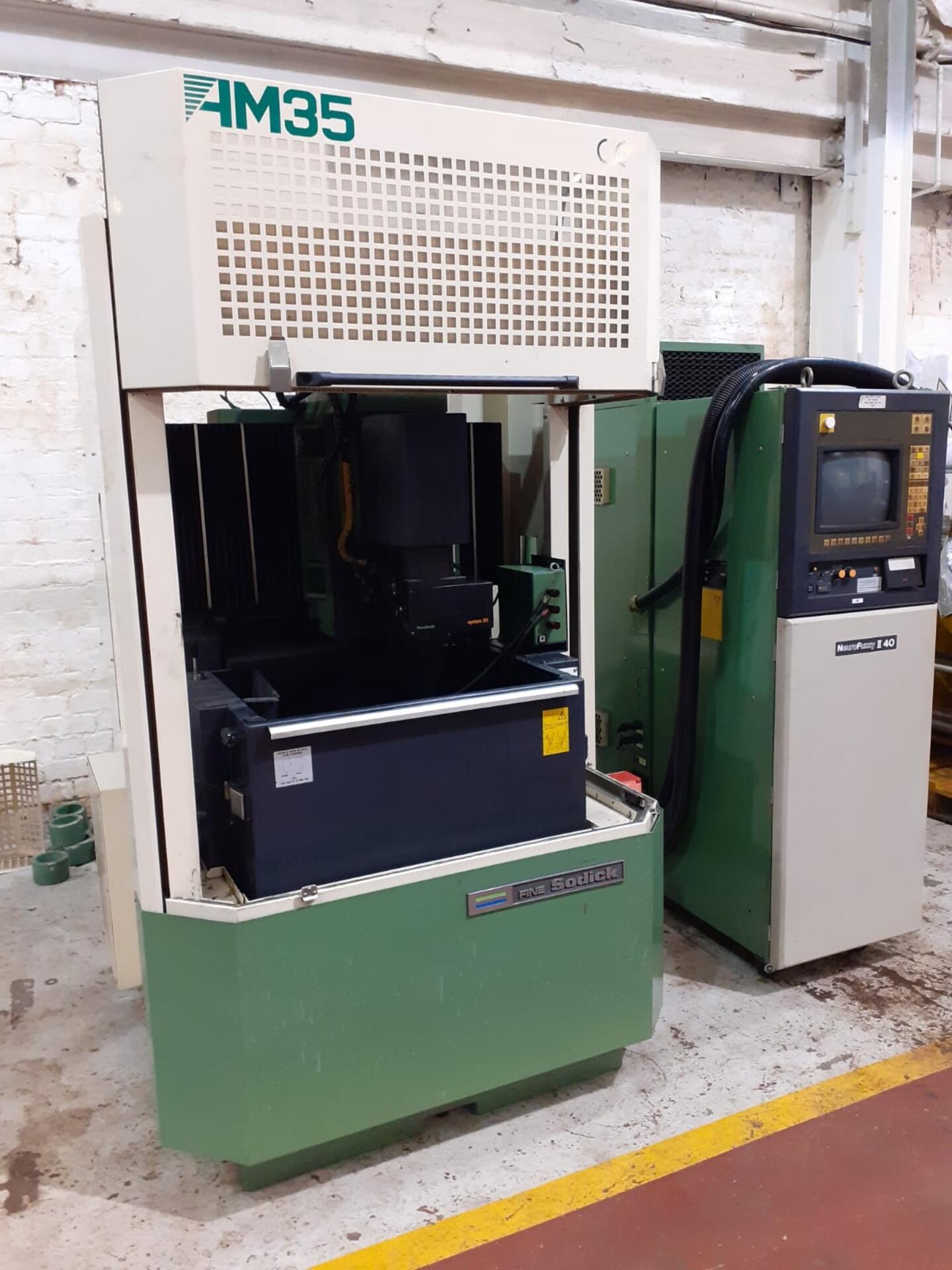

Sodick AM 35 CNC EDM Machine

Code: ST3963

Sodick AM 35 CNC EDM Machine

Model: AM 35
Year: 1998

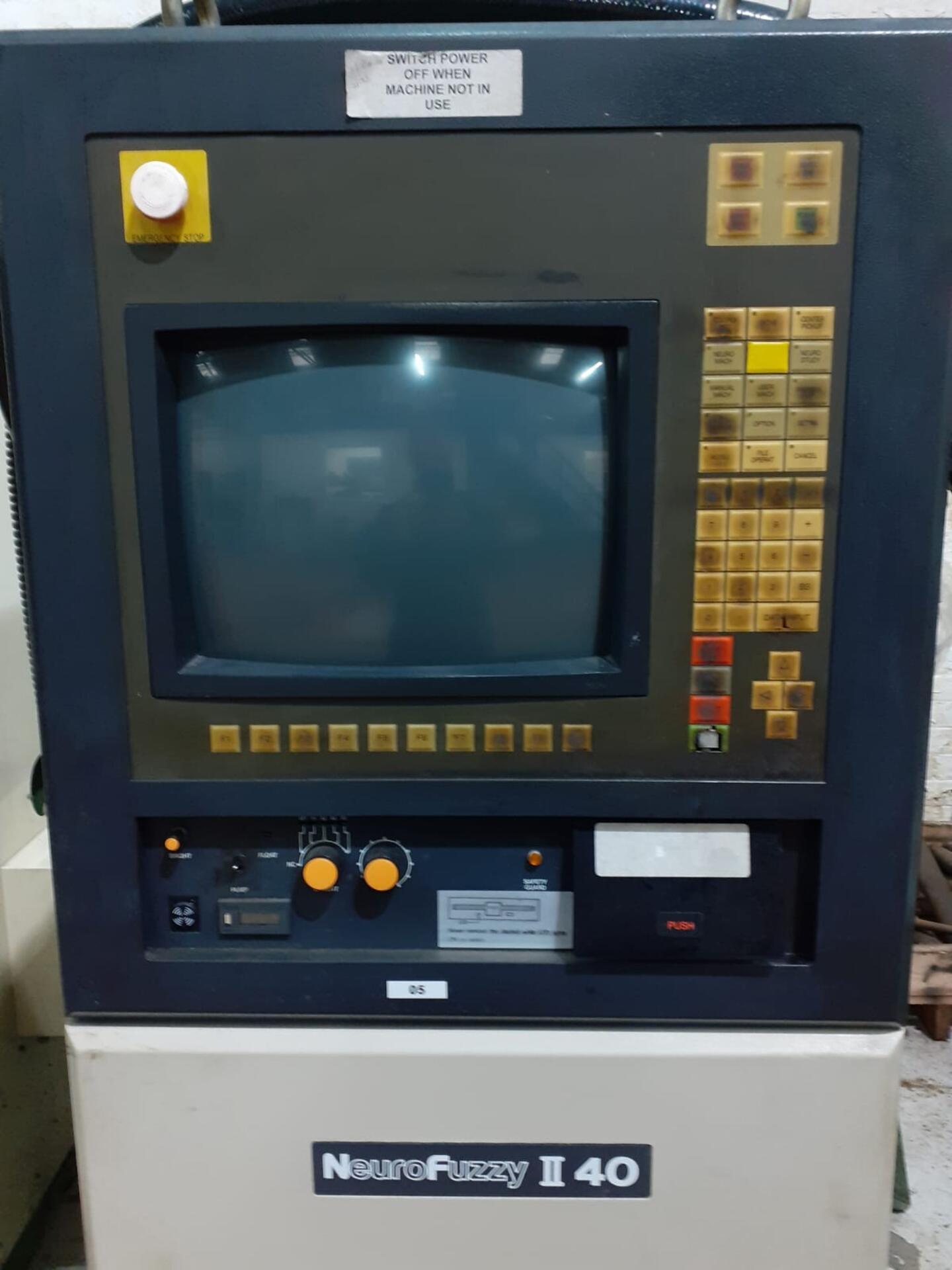

Control: Neuro Fuzzy II 40:

‘X’ axis Travel: 350mm
‘Y’ axis Travel: 250mm
‘Z’ axis Travel: 250mm

Tank Dimensions: W 790 x D 590 x H 320mm

Max. electrode weight: 50 kg
Max. Table Load: 550 kg

With:
Magnetic chuck 350 x 250mm
