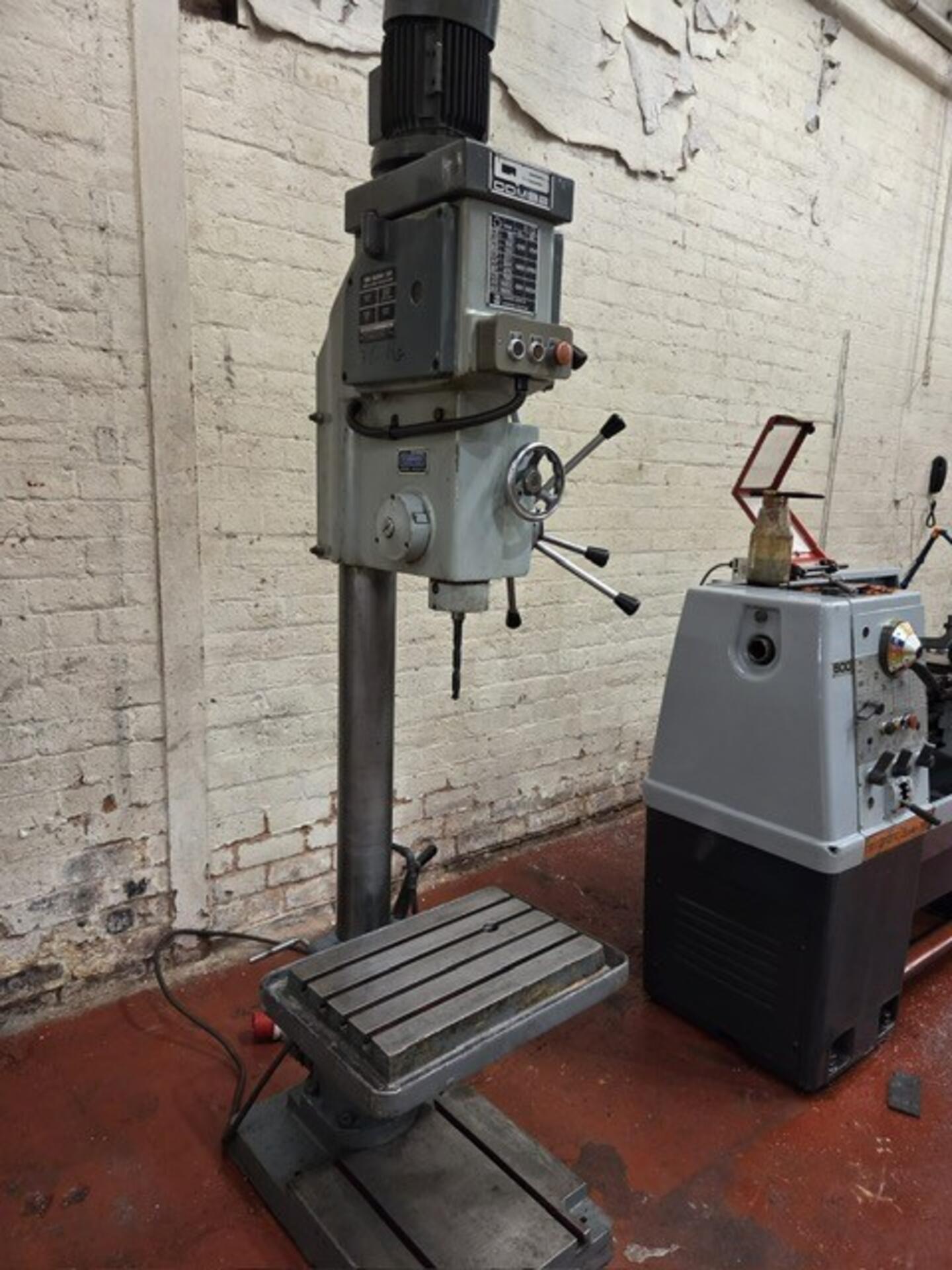

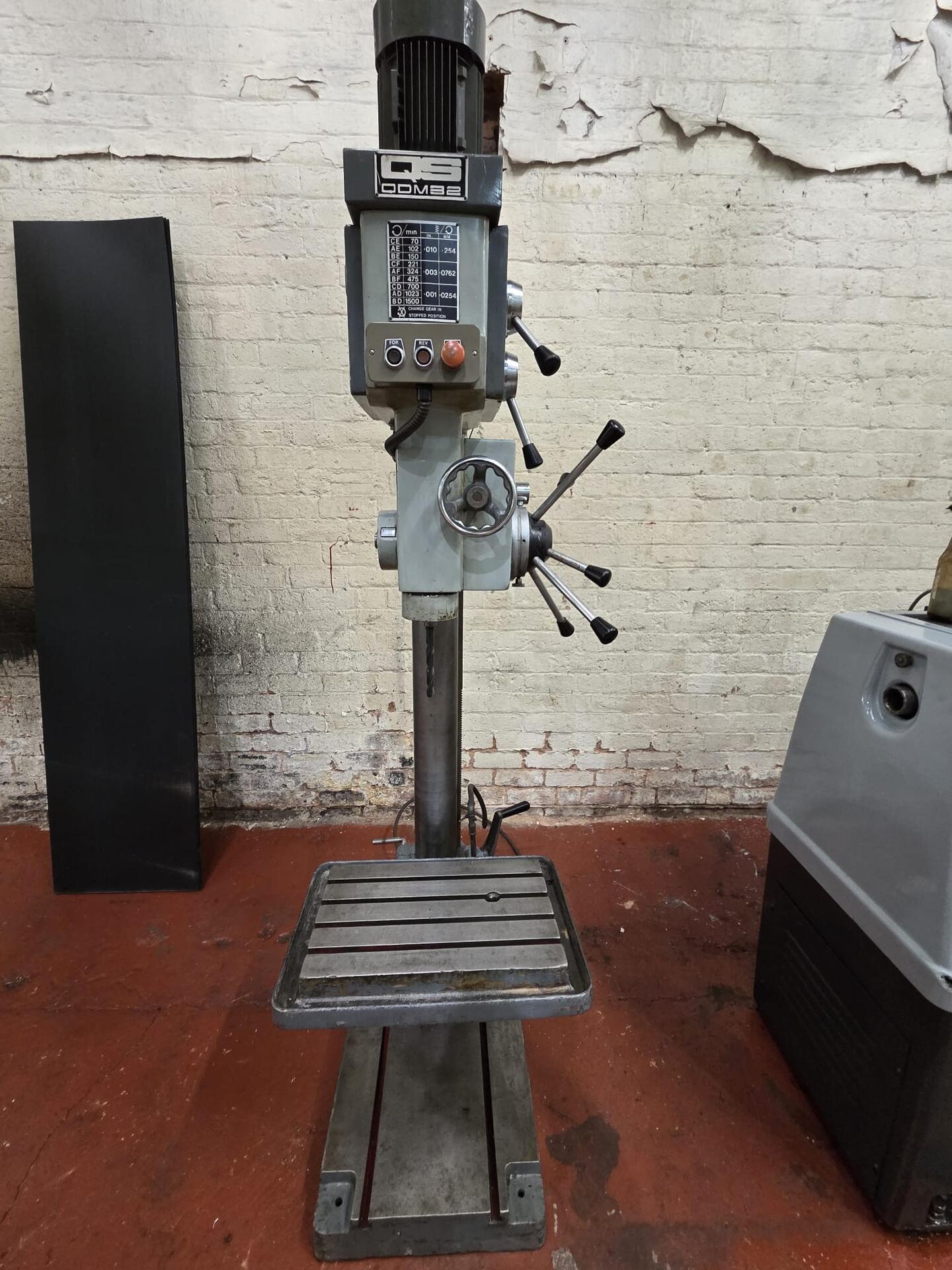

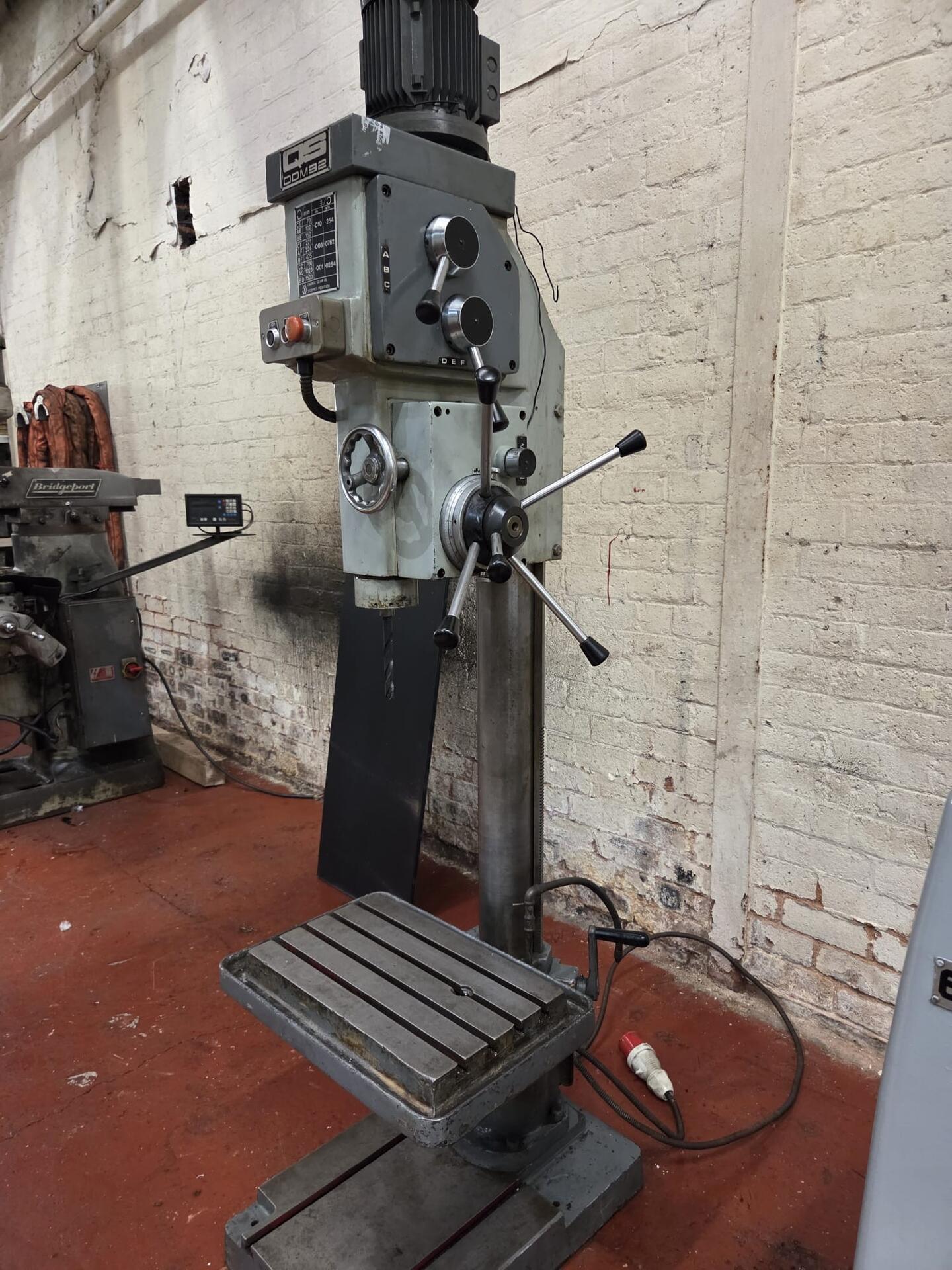

Qualters and Smiths Q&S ODM 32 Pillar Drill

Code: ST3979

Qualters and Smith Geared Head Pillar Drill

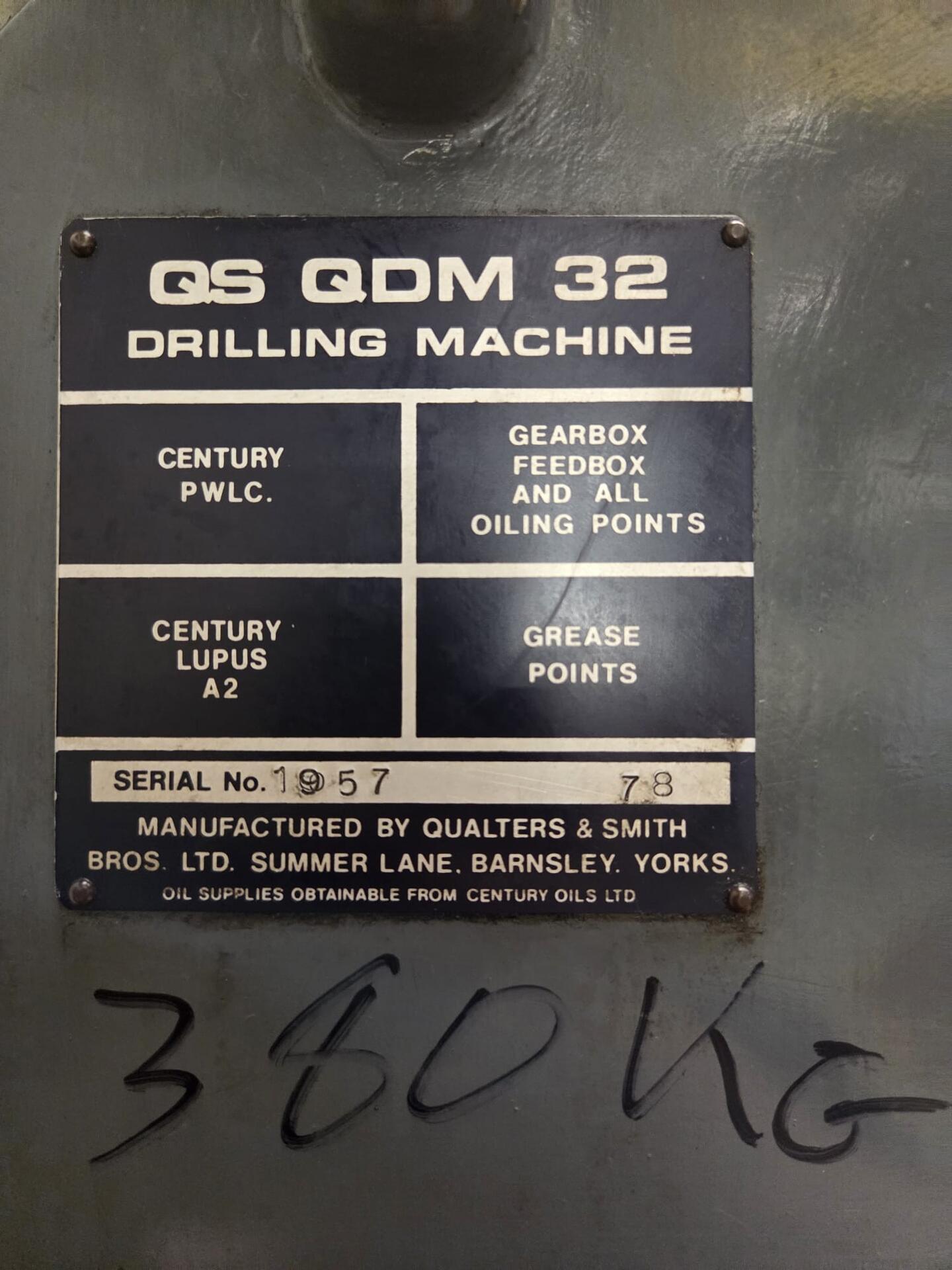

Model:                                                QDM 32

Drilling Capacity:                              32mm (mild Steel)

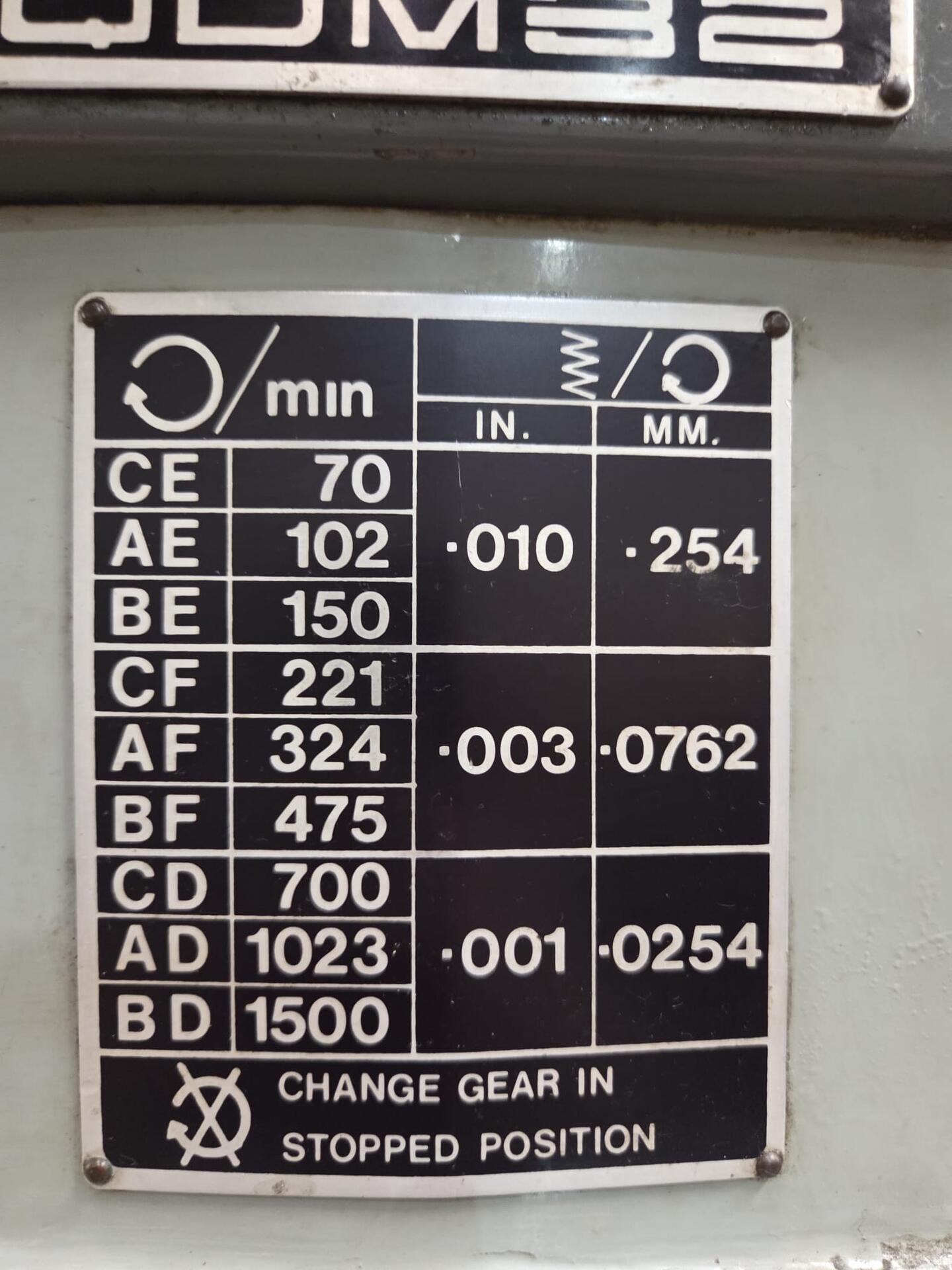

Spindle Speeds:                               70-1500 RPM

Spindle Taper:                                  No 3 Morse

Spindle Stroke:                                 152mm

Throat:                                                228mm



Table Area:                                       508 x 305mm Rise and Fall / Swivel

Power Feeds



Dimensions:                                     635 x 724 x 2241mm High

Weight:                                              508 KGS

If you would like to make an enquiry about the Qualters and Smiths Q&S ODM 32 Pillar Drill , please use the form below or you can contact us by telephone:
+44 (0) 1382 200 797
Fax +44 (0)1382 202 853
email: sales@taysidemachinery.co.uk
