Chester Commander Heavy Duty Lathe 800 x 2000mm

Code: ST4002

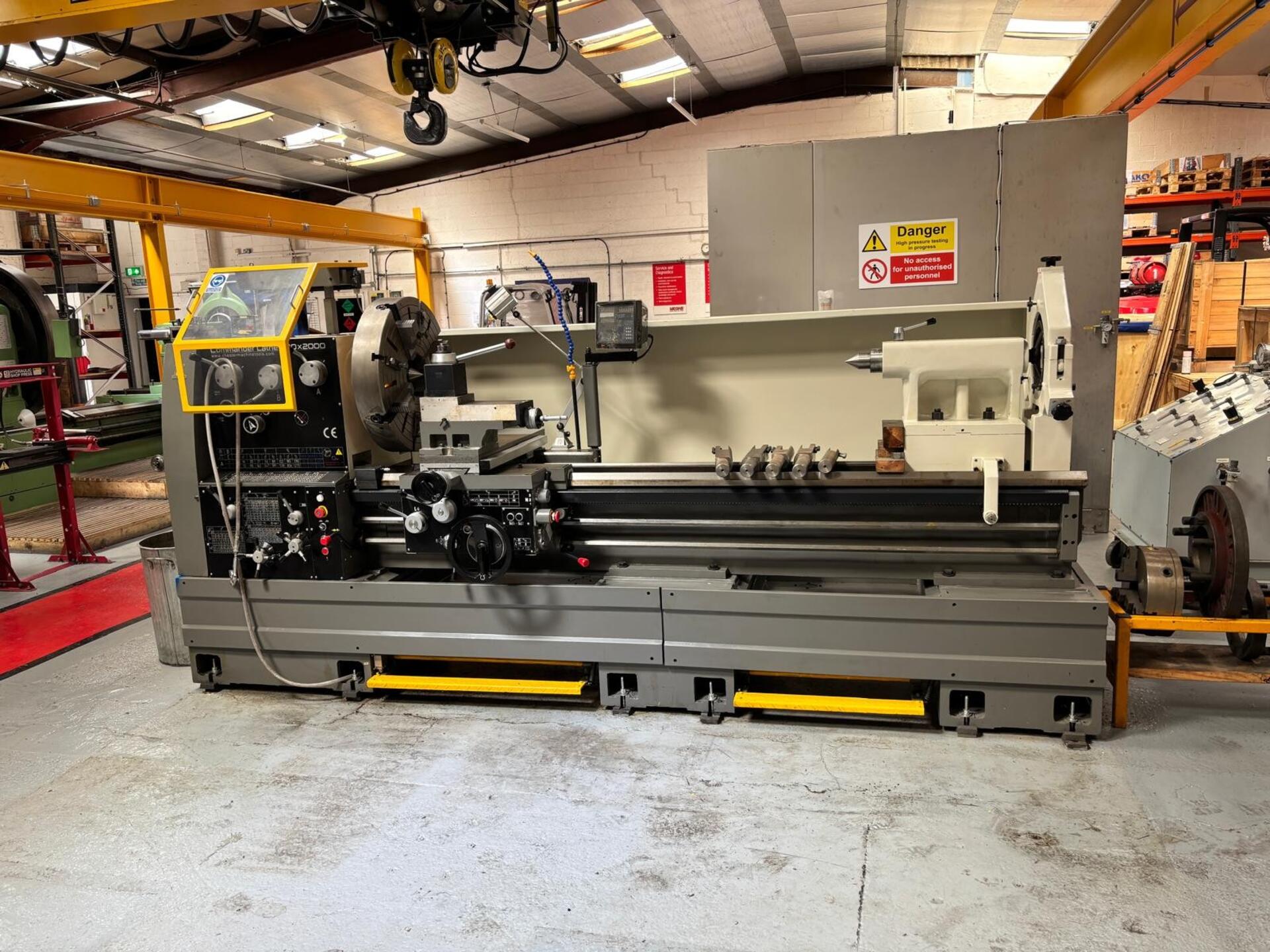

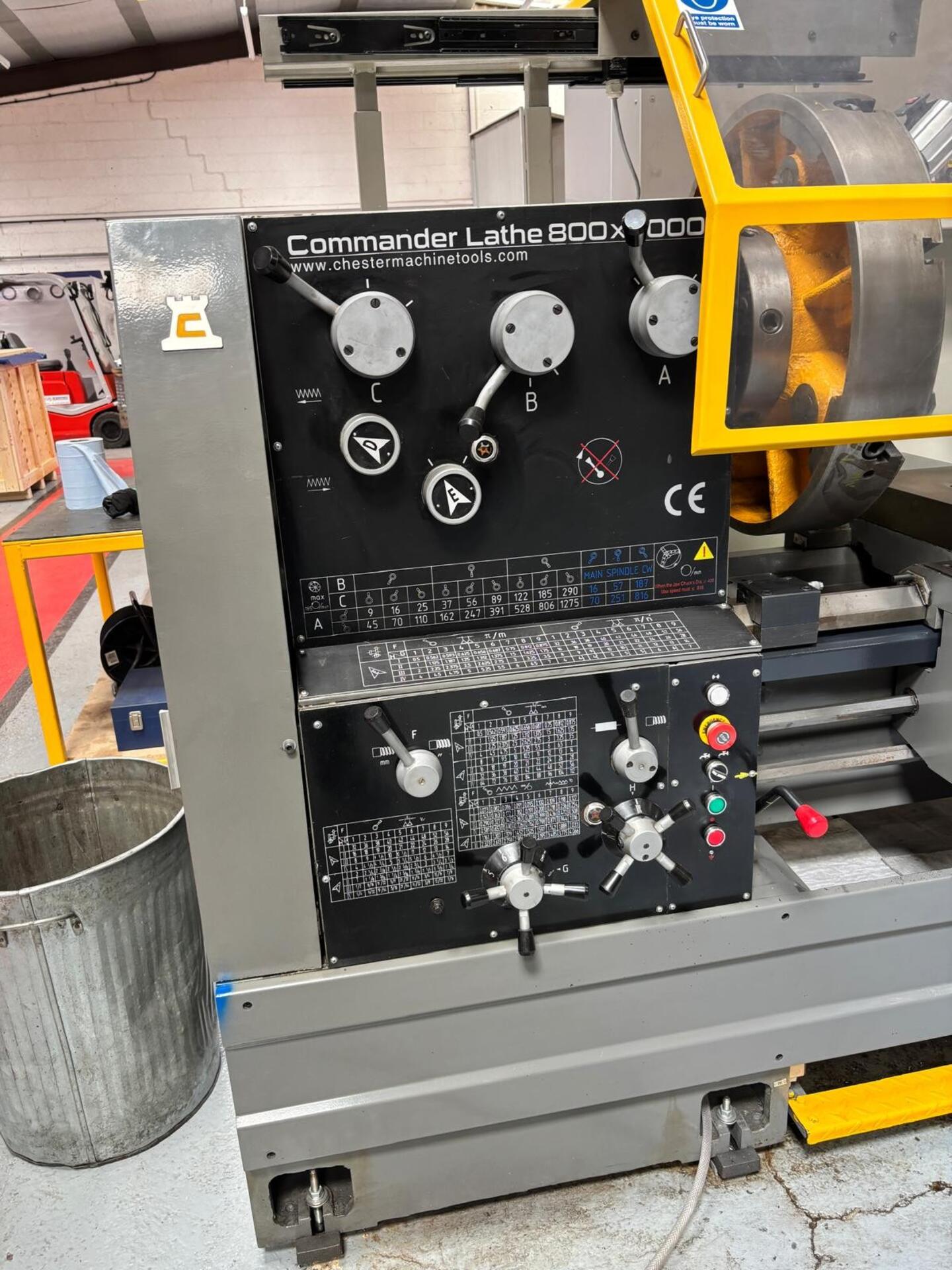

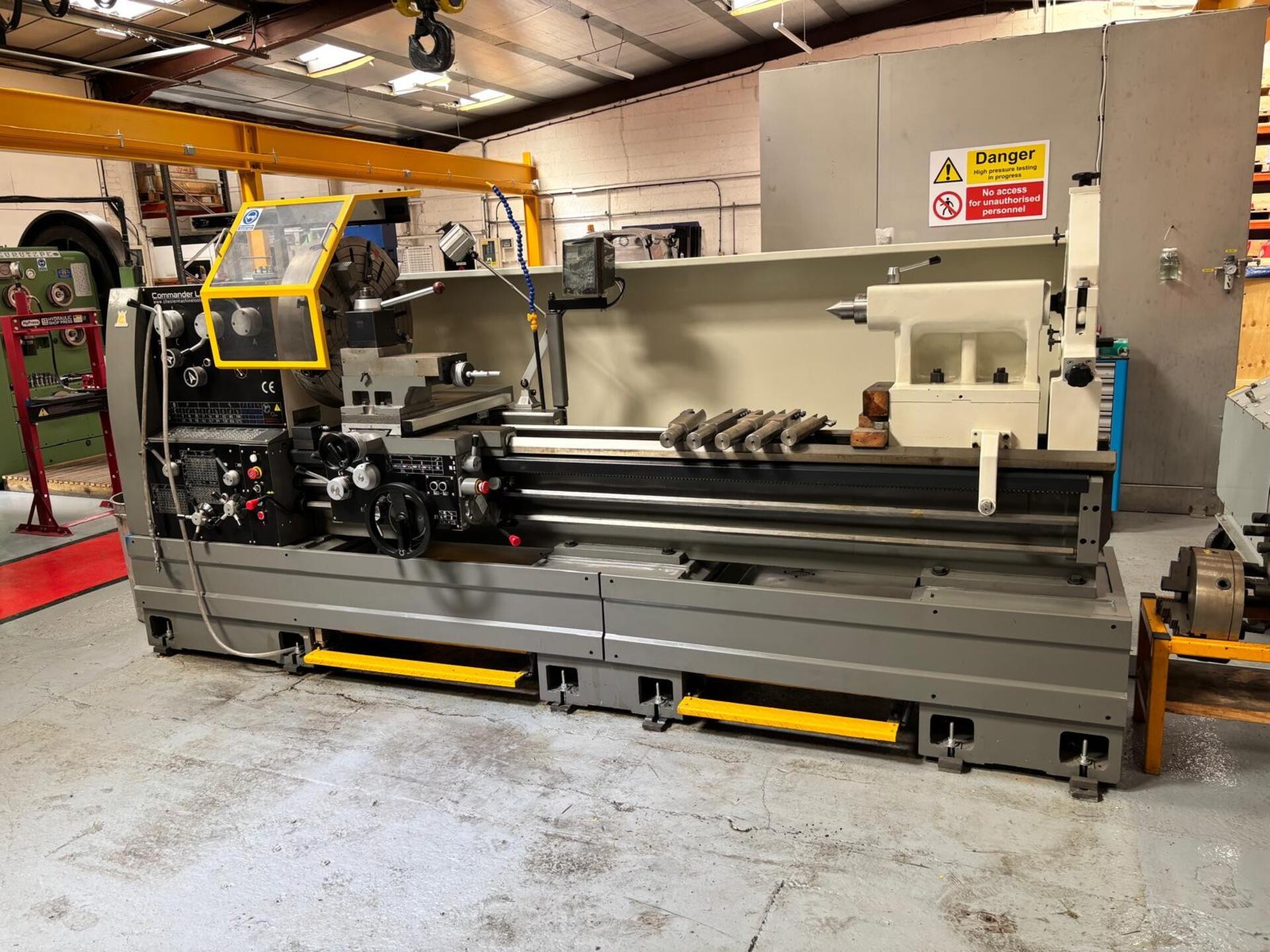

Chester Heavy Duty Lathe



Model:                                                 Commander Series

Year:                                                   2018



Swing Over Bed:                                800mm

Swing Over Top Slide:                       545mm

Swing In Gap:                                     1000mm

Distance Between Centres:                 2000mm



Spindle Speeds:                                  9-1275 RPM

Spindle Bore:                                      103mm

Main Motor:                                        11 KW

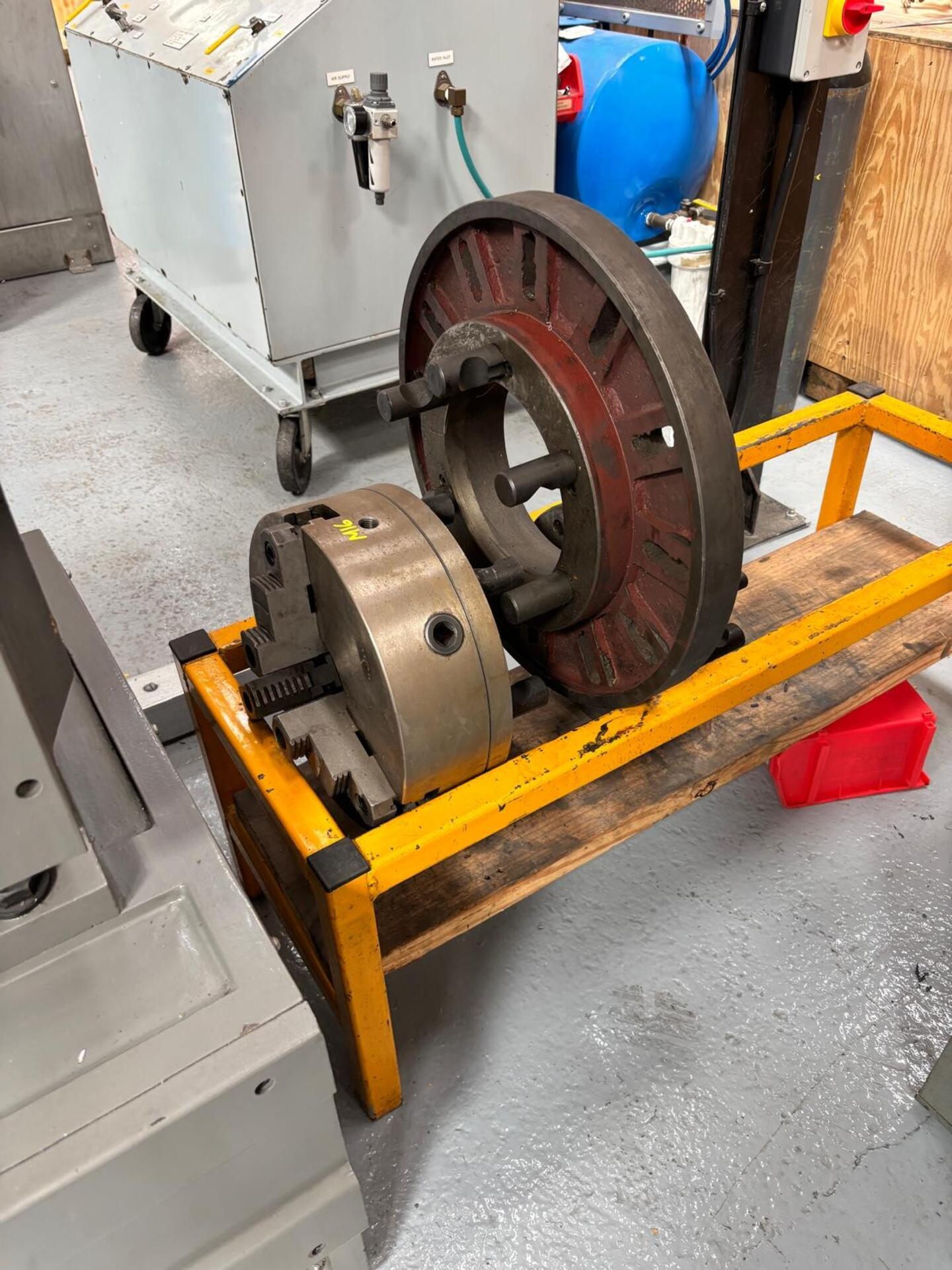

Machine With:                                    3 Jaw Chuck

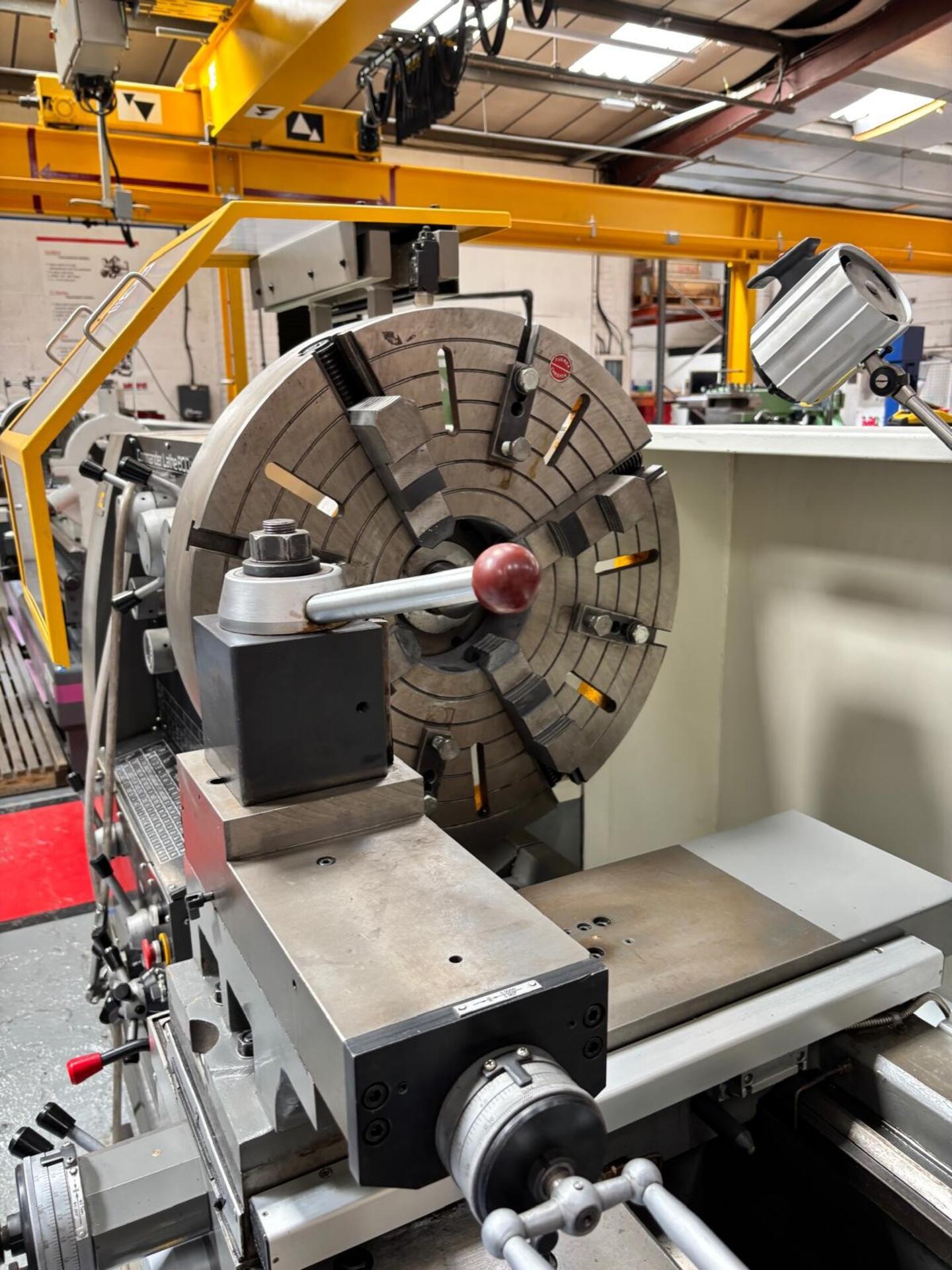

                                                            4 Jaw Chuck

                                                            Fixed Steady

                                                            Digital Readout

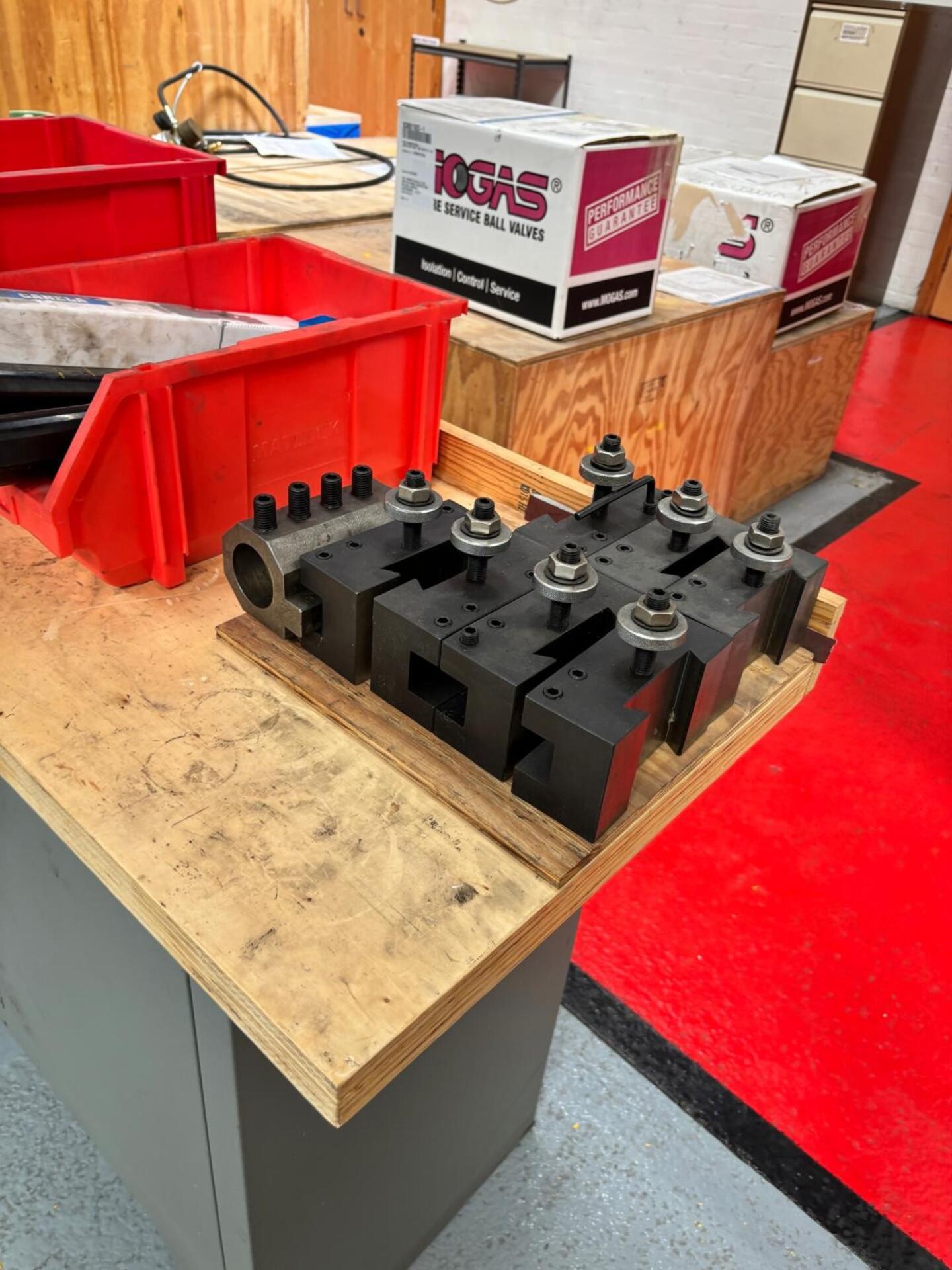

Quick Change Toolpost

Light

Coolant



Dimensions: 3800 x 1250 x 2000mm High

Weight: 2650 KGS

If you would like to make an enquiry about the Chester Commander Heavy Duty Lathe 800 x 2000mm , please use the form below or you can contact us by telephone:
