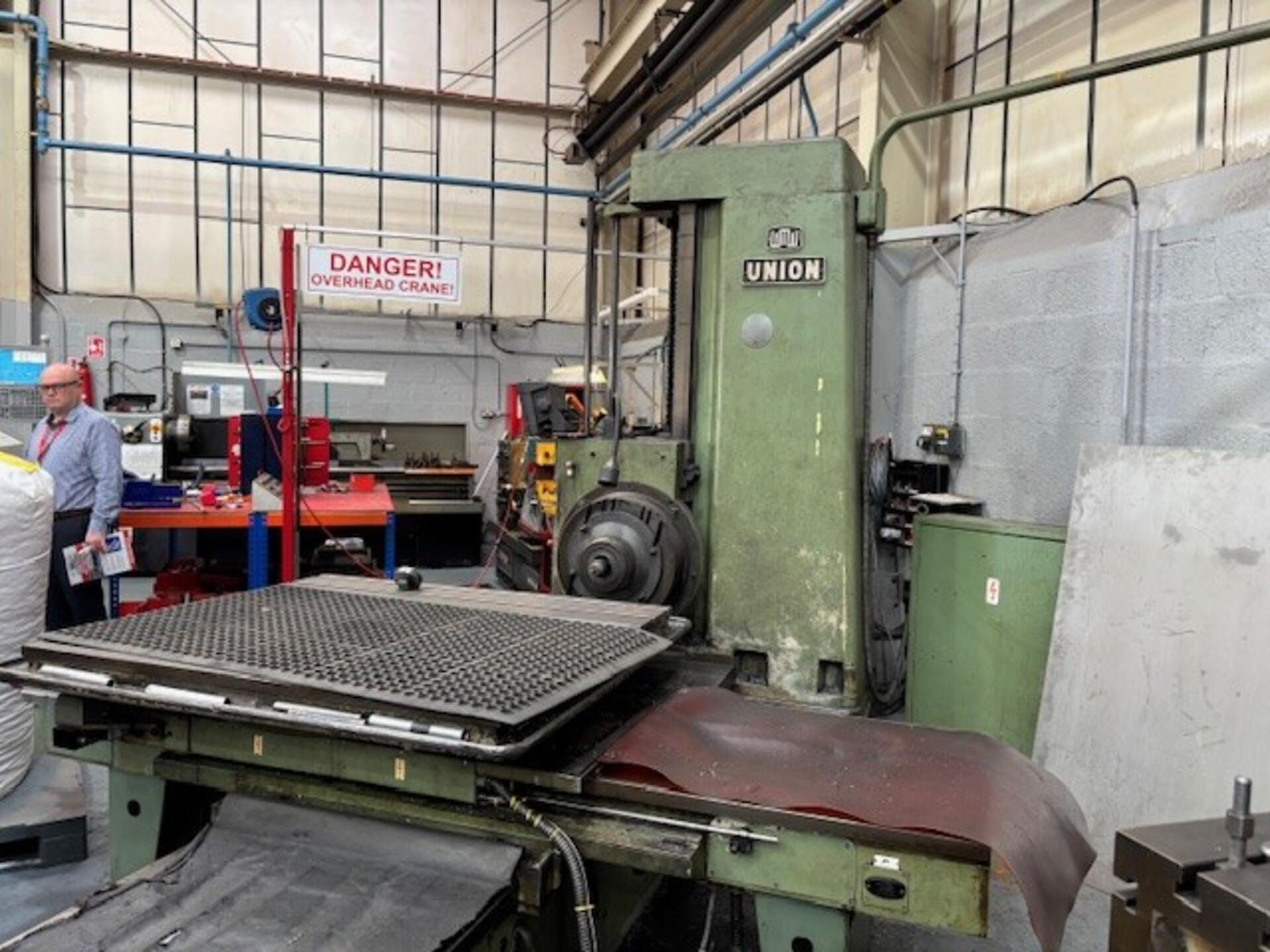

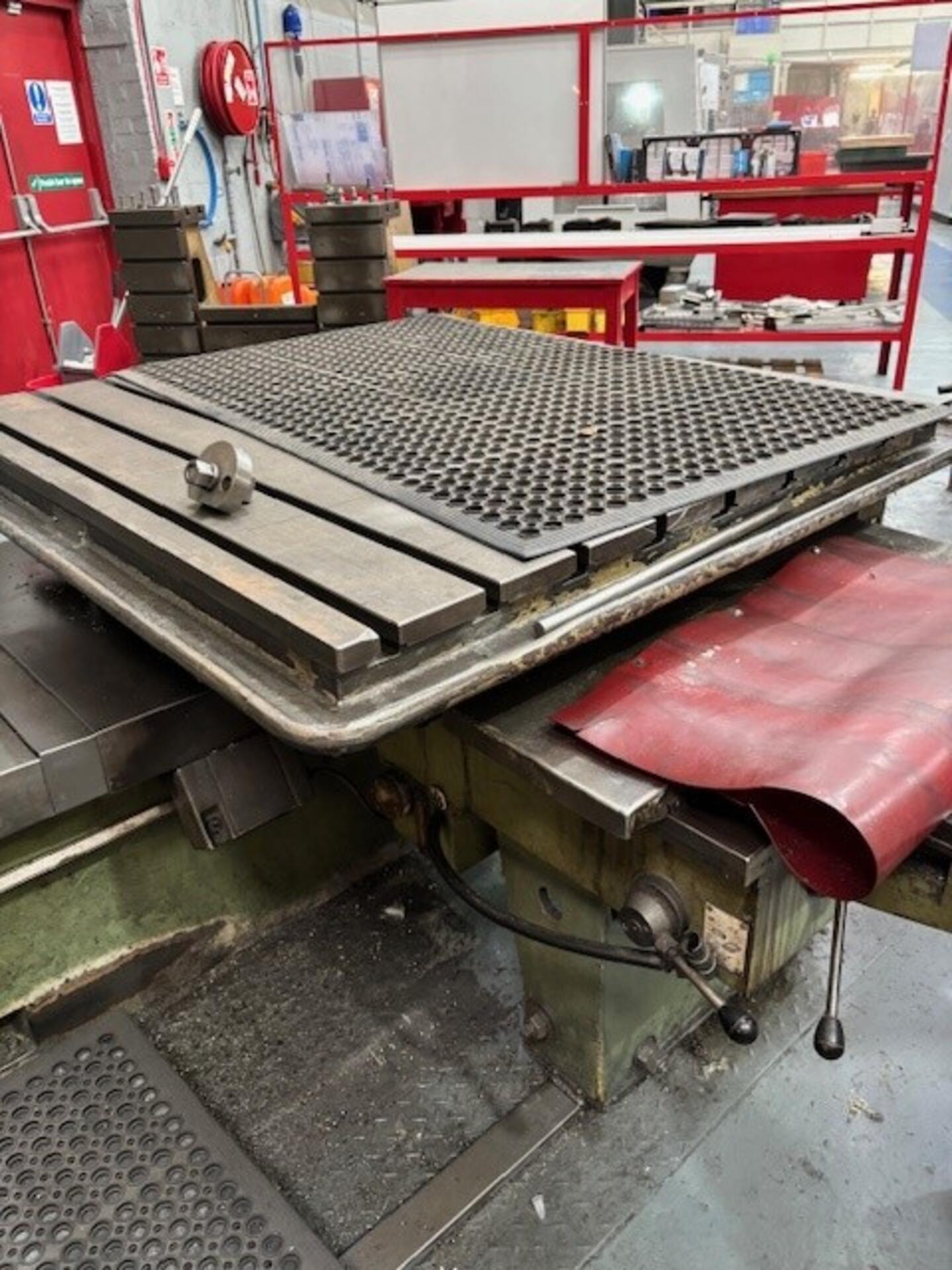

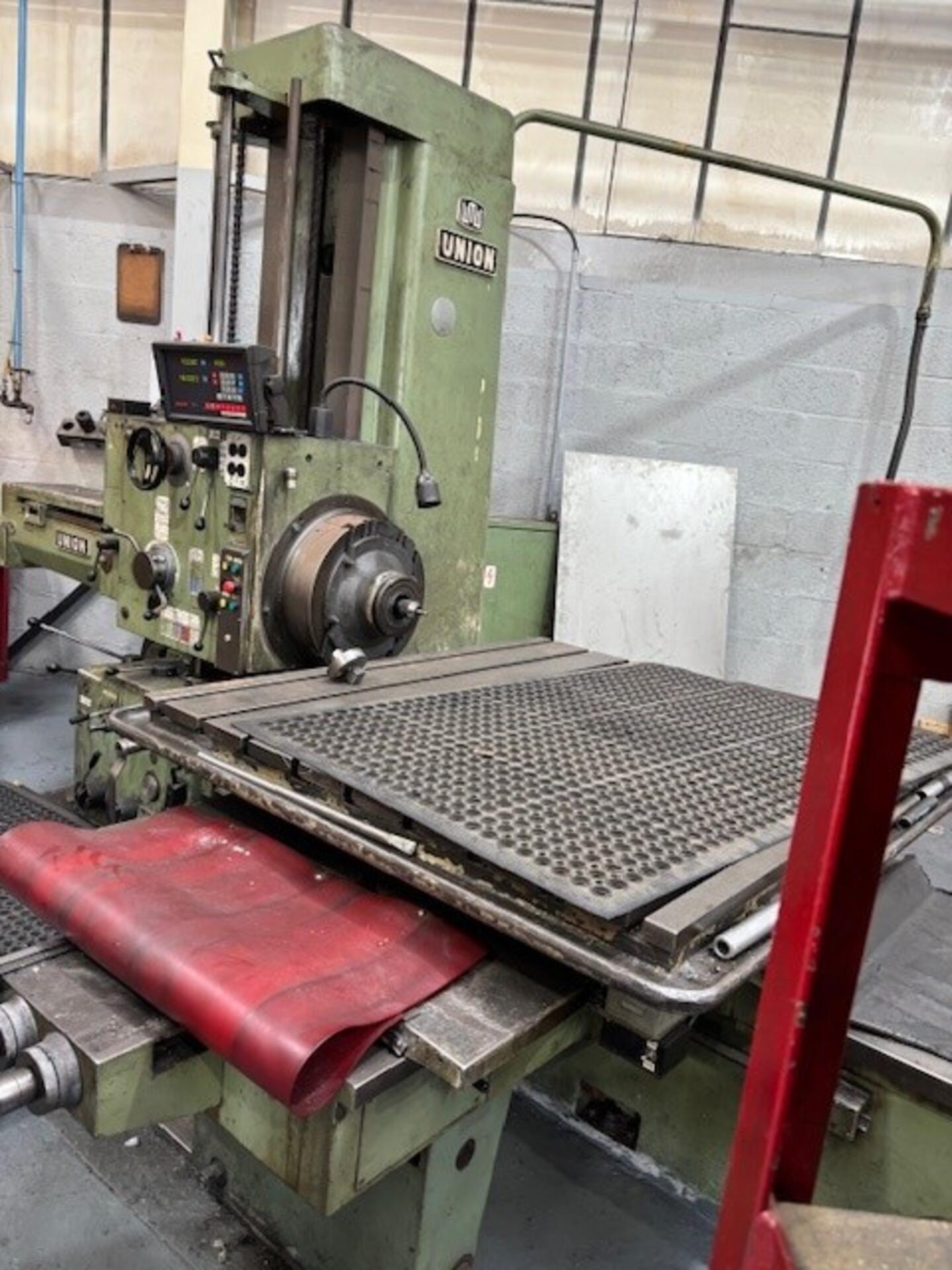

Union BFT 80/2 Horizontal Borer

Code: ST4004

Union Horizontal Borer



Model:                                                 BFT 80/2



Spindle Dia.:                                       80mm

Spindle Speeds:                                  8-1250 RPM

Spindle Taper:                                     No 5 Morse

Spindle Travel:                                    710mm



Facing Head Dia:                                500mm

Facing Head Speeds:                          8-200



Cross Travel:                                       1250mm

Long Travel:                                        2000mm

Vertical Travel:                                   1000mm



Machine With:                                    Spindle Tooling

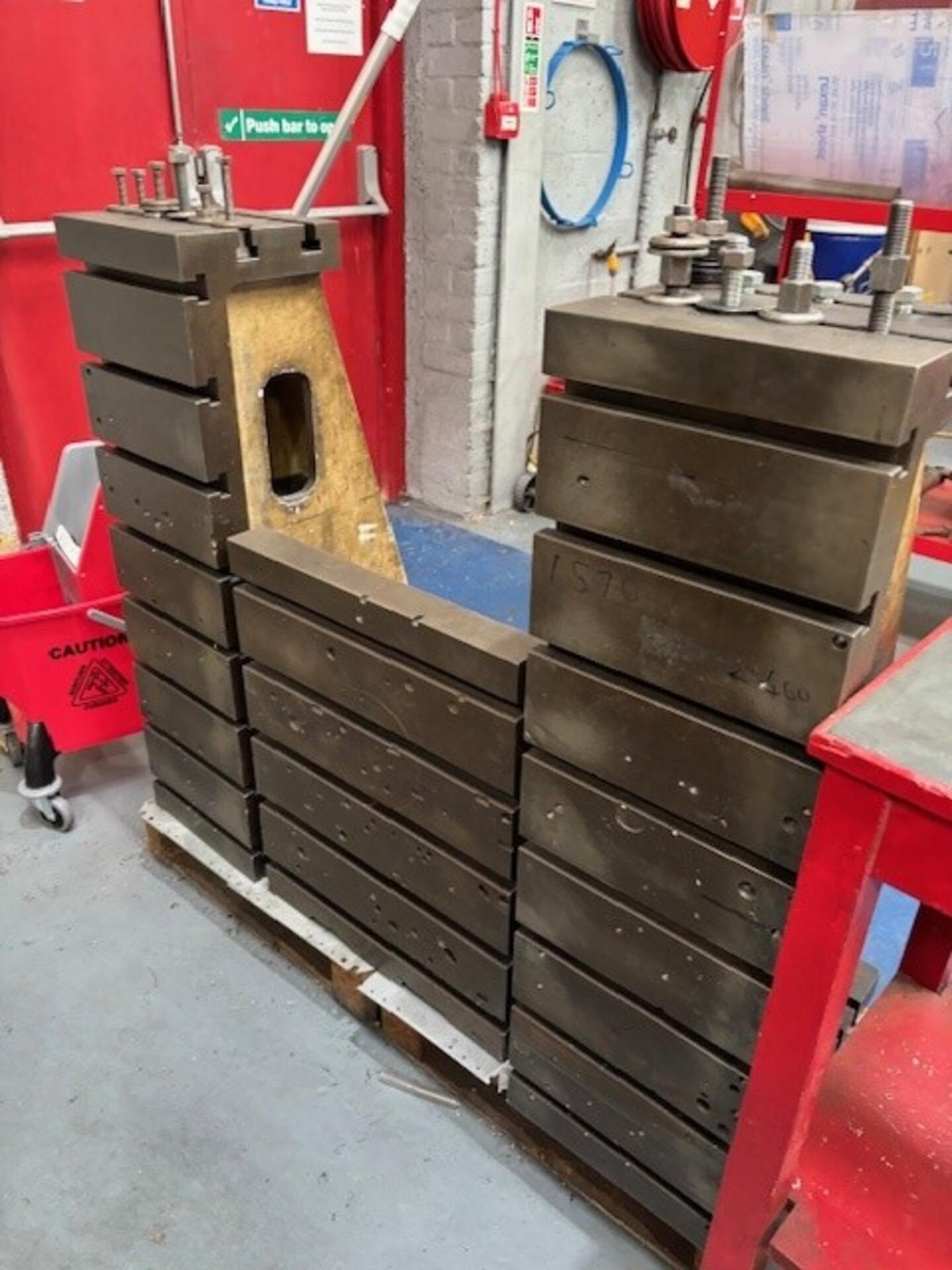

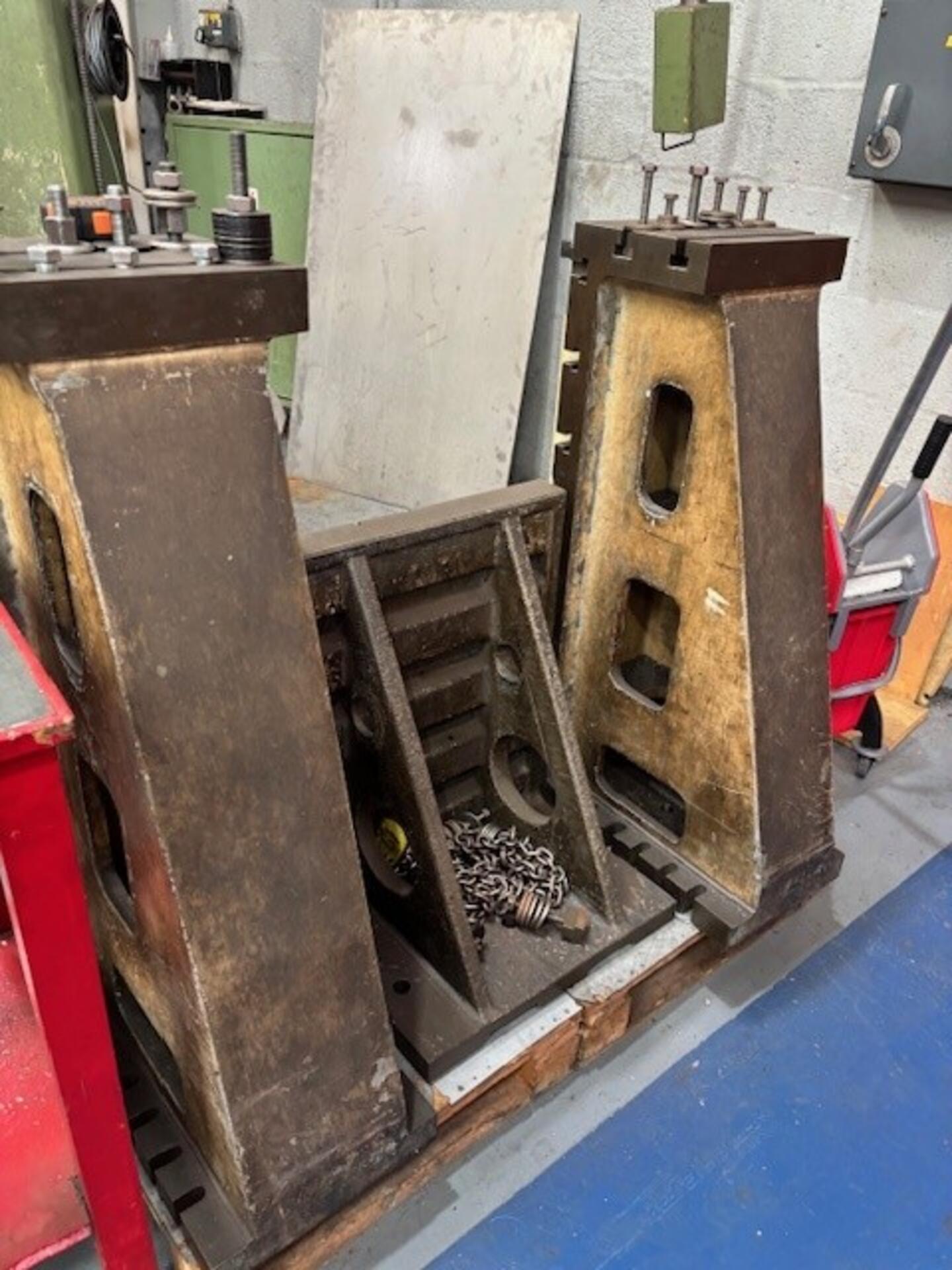

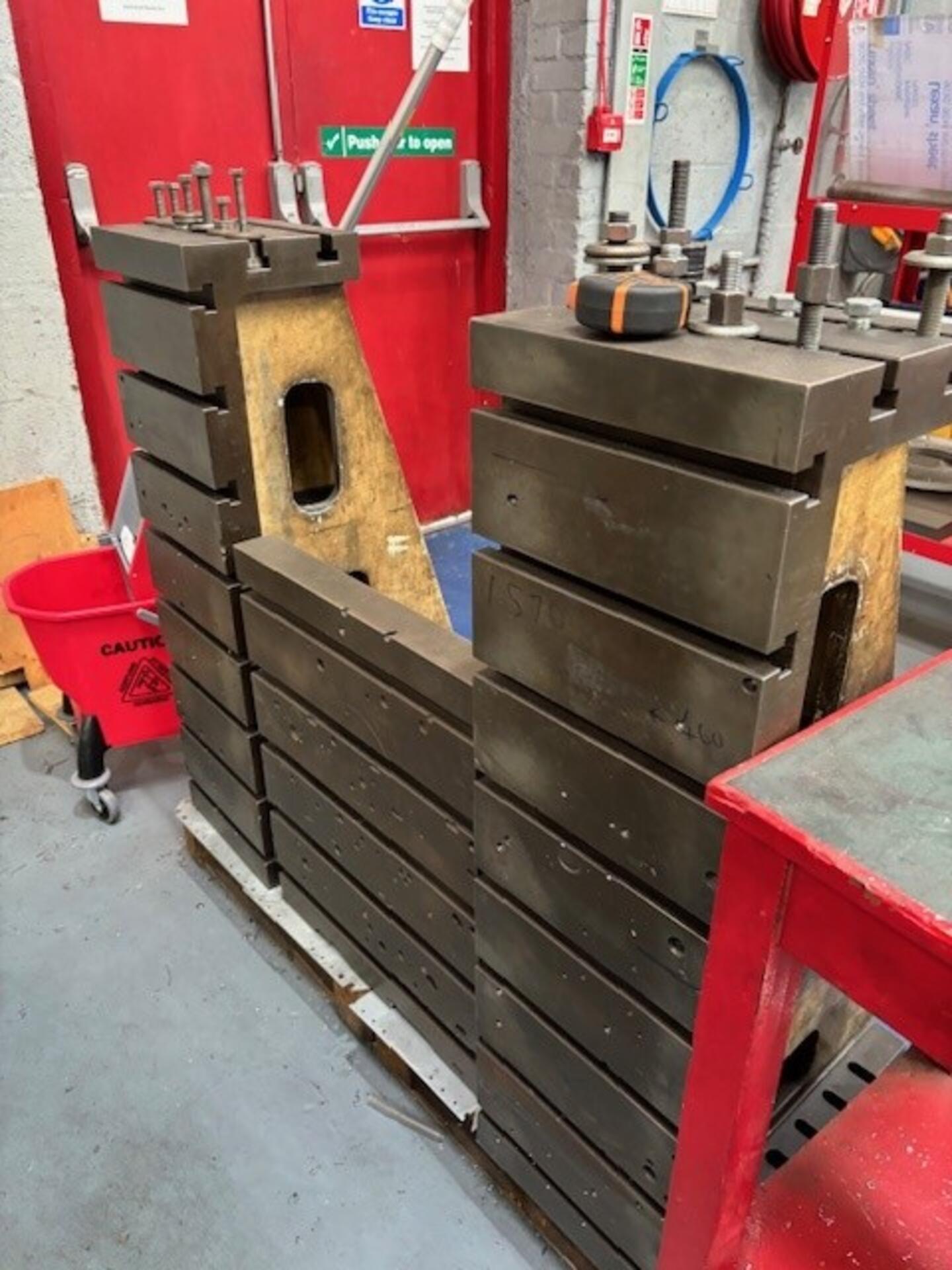

                                                            Angle Plates



Dimensions: 5900 x 3200 x 2700mm

Weight: 12,000 KGS
