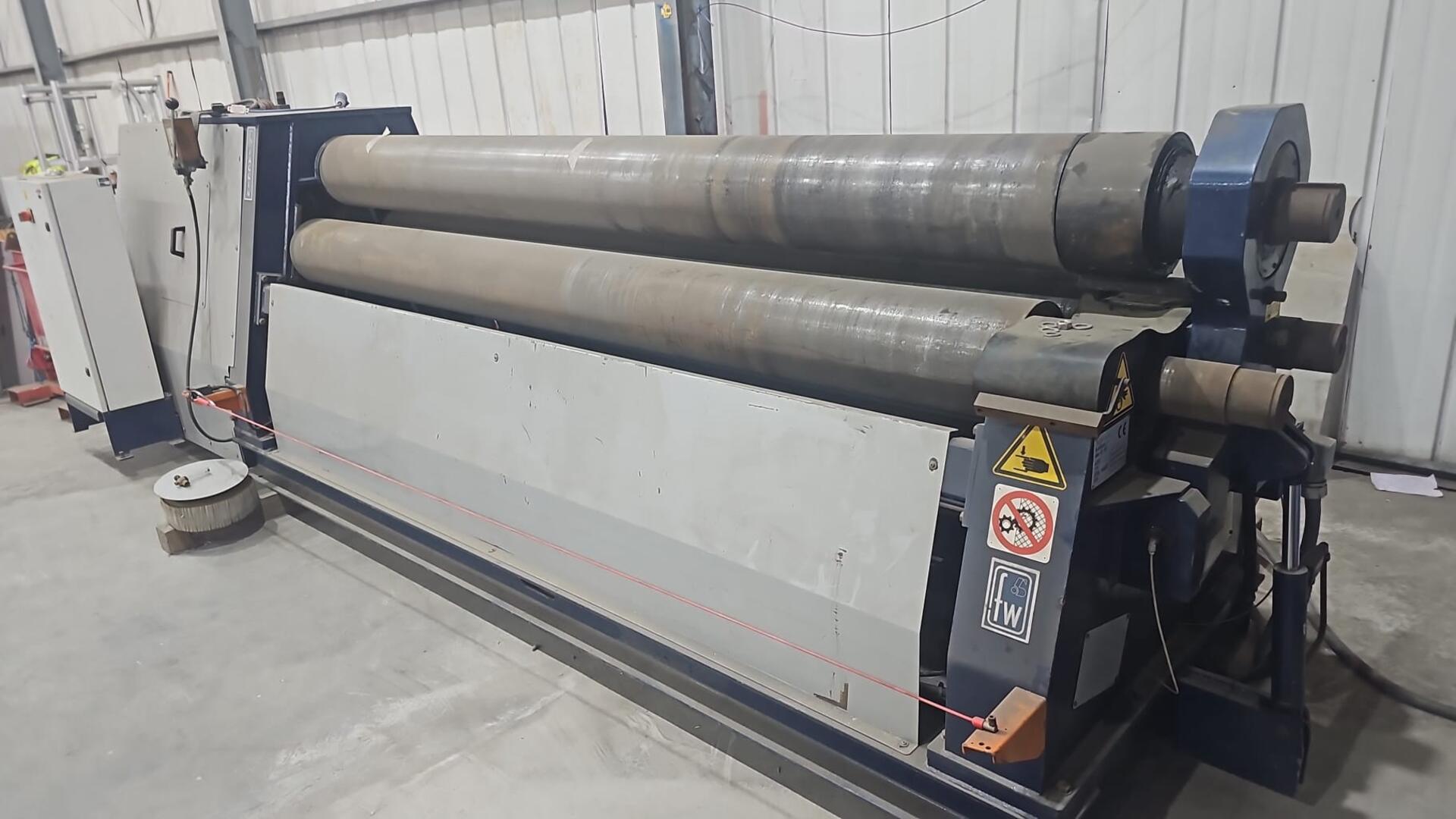

Faccin 3HEL 3128 3 Rolls Double Pinch Bending Rolls

Code: ST4008

Faccin 3 Roll Double Pinch Bending Rolls

Model:                                                             3HEL 3128
Year:                                                               2019

Bending Length:                                            3000mm



Rolling 5 x Dia. Top Roll:                             15mm

Rolling 5 x Dia. Top Roll Pre-Bend:              12mm

Rolling 1.4 x Dia Top Roll Pre Bend:                        9mm



Top Roll Diameter:                                         285mm

Side Rolls Diameter:                                       265mm



Motor:                                                             15 HP



Dimensions:    5500 x 1200 x 1700mm High

Weight:           8000 Kgs

If you would like to make an enquiry about the Faccin 3HEL 3128 3 Rolls Double Pinch Bending Rolls , please use the form below or you can contact us by telephone:
+44 (0) 1382 200 797
Fax +44 (0)1382 202 853
email: sales@taysidemachinery.co.uk
