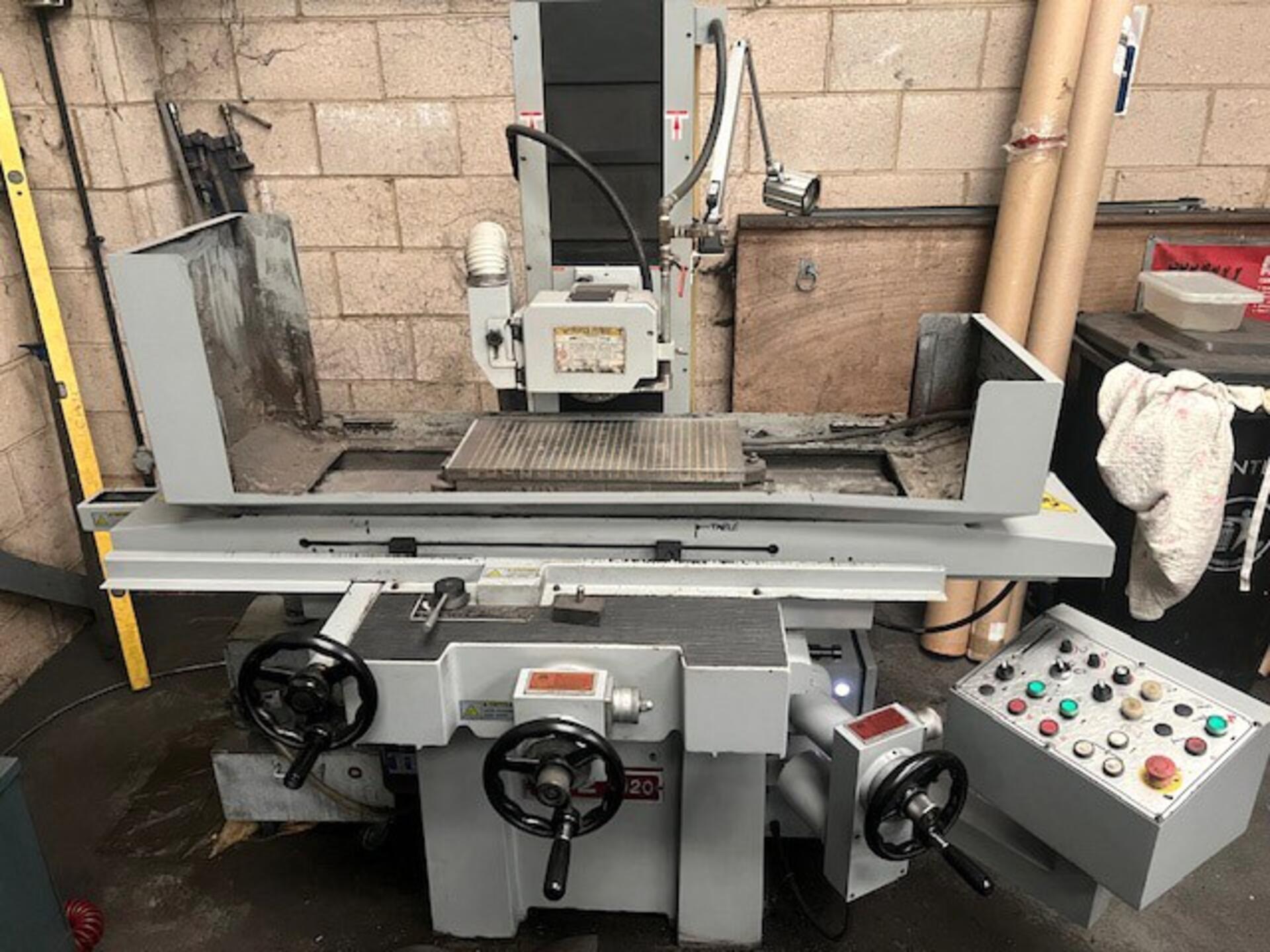

XYZ 1020 Surface Grinder

Code: ST4045

XYZ 1020 Surface Grinder



Model: 1020

Year: 2016



Magnetic Chuck Size: 250 x 500mm

Max. Grinding Length: 500mm

Max. Grinding width: 250mm

Max. table surface to spindle centre: 500mm



Spindle Speeds: 2900 RPM



Grinding wheel dia.: 180mm

Grinding wheel width: 12mm (19mm max)

Grinding Wheel bore: 31.75mm



Machine with:

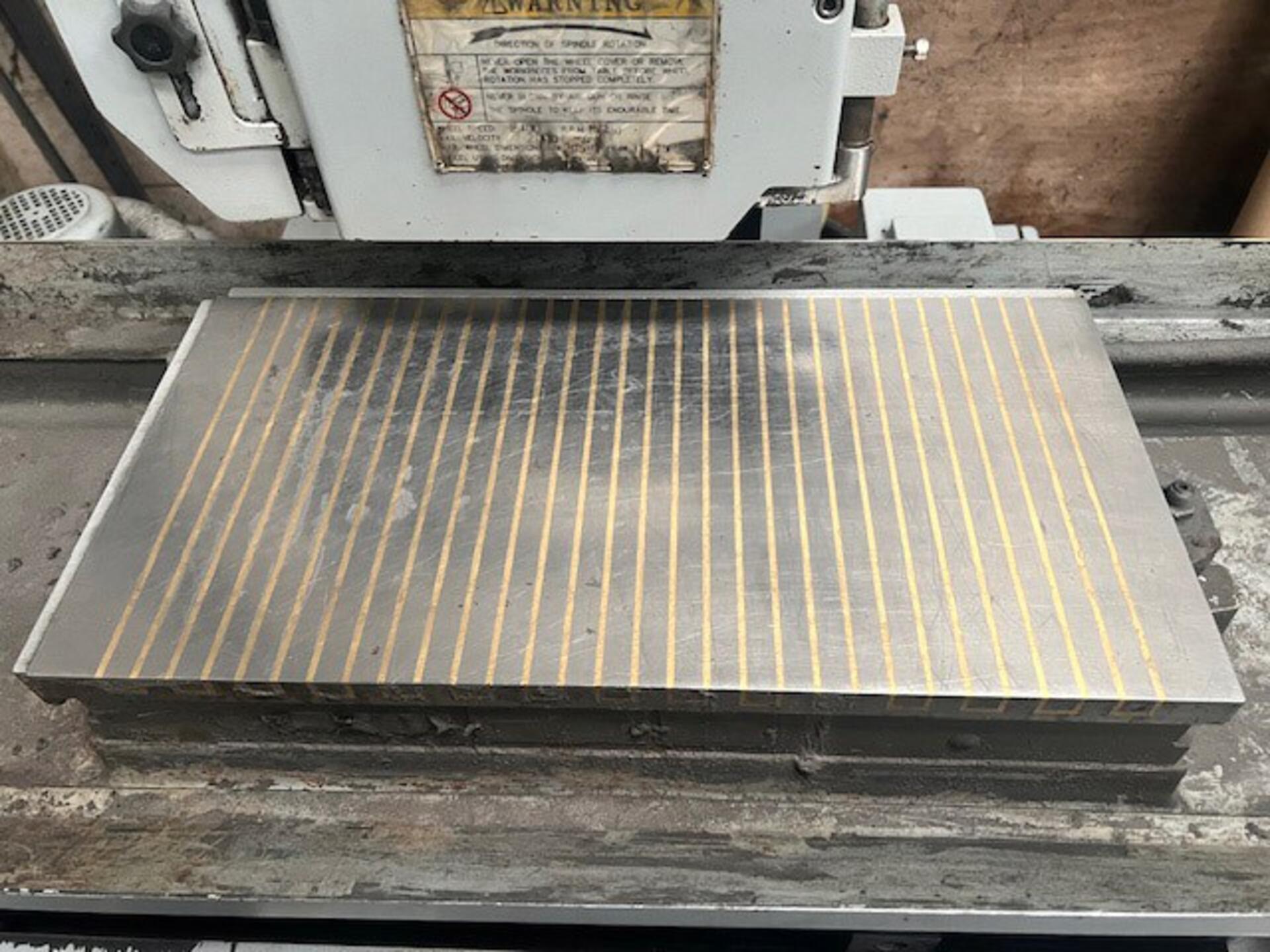

Electro Magnetic Chick

Coolant

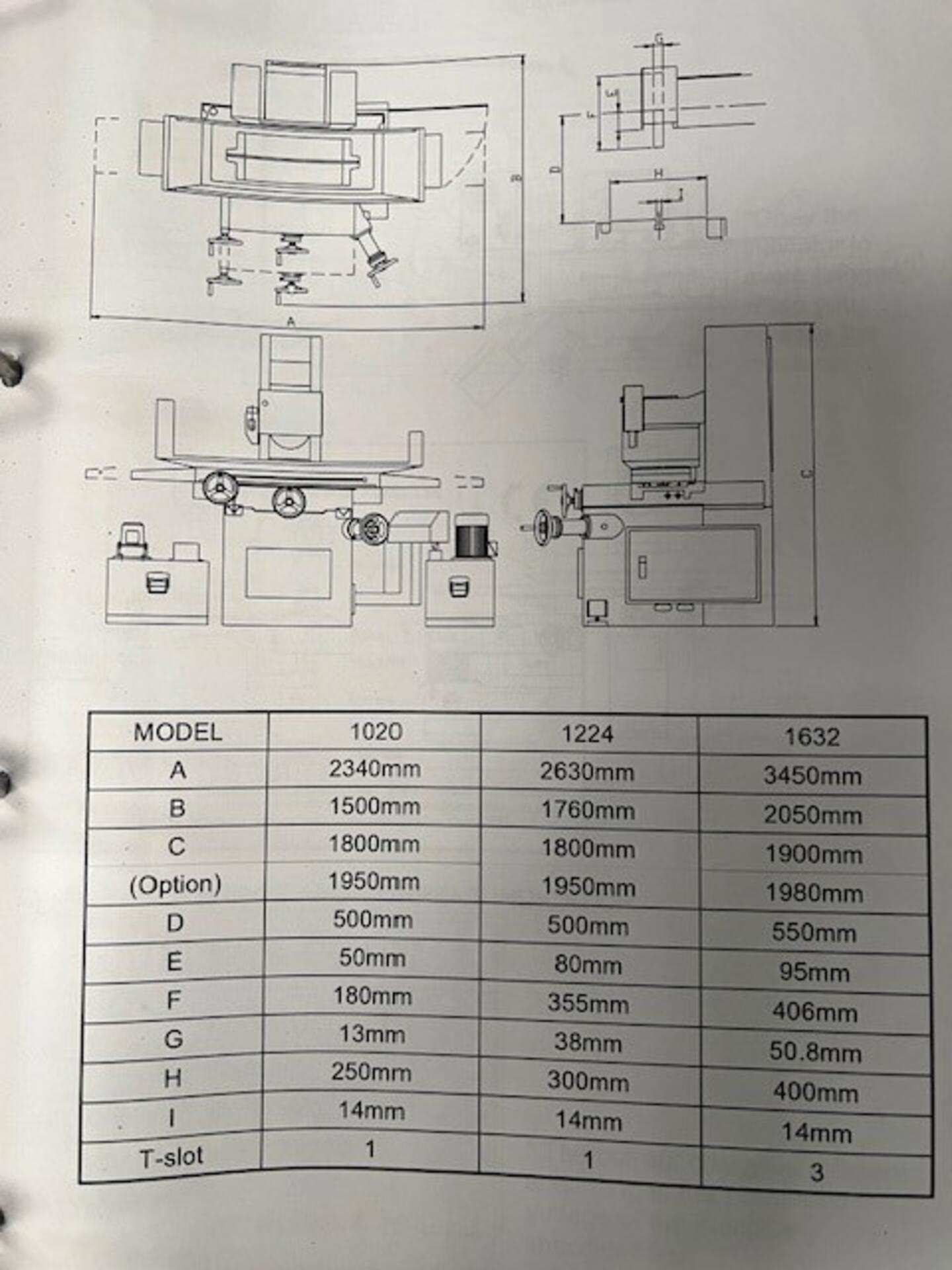

Dimensions: 2340 x 1500 x 1800mm high

Weight: 1350 kgs





If you would like to make an enquiry about the XYZ 1020 Surface Grinder , please use the form below or you can contact us by telephone:
+44 (0) 1382 200 797
Fax +44 (0)1382 202 853
email: sales@taysidemachinery.co.uk
