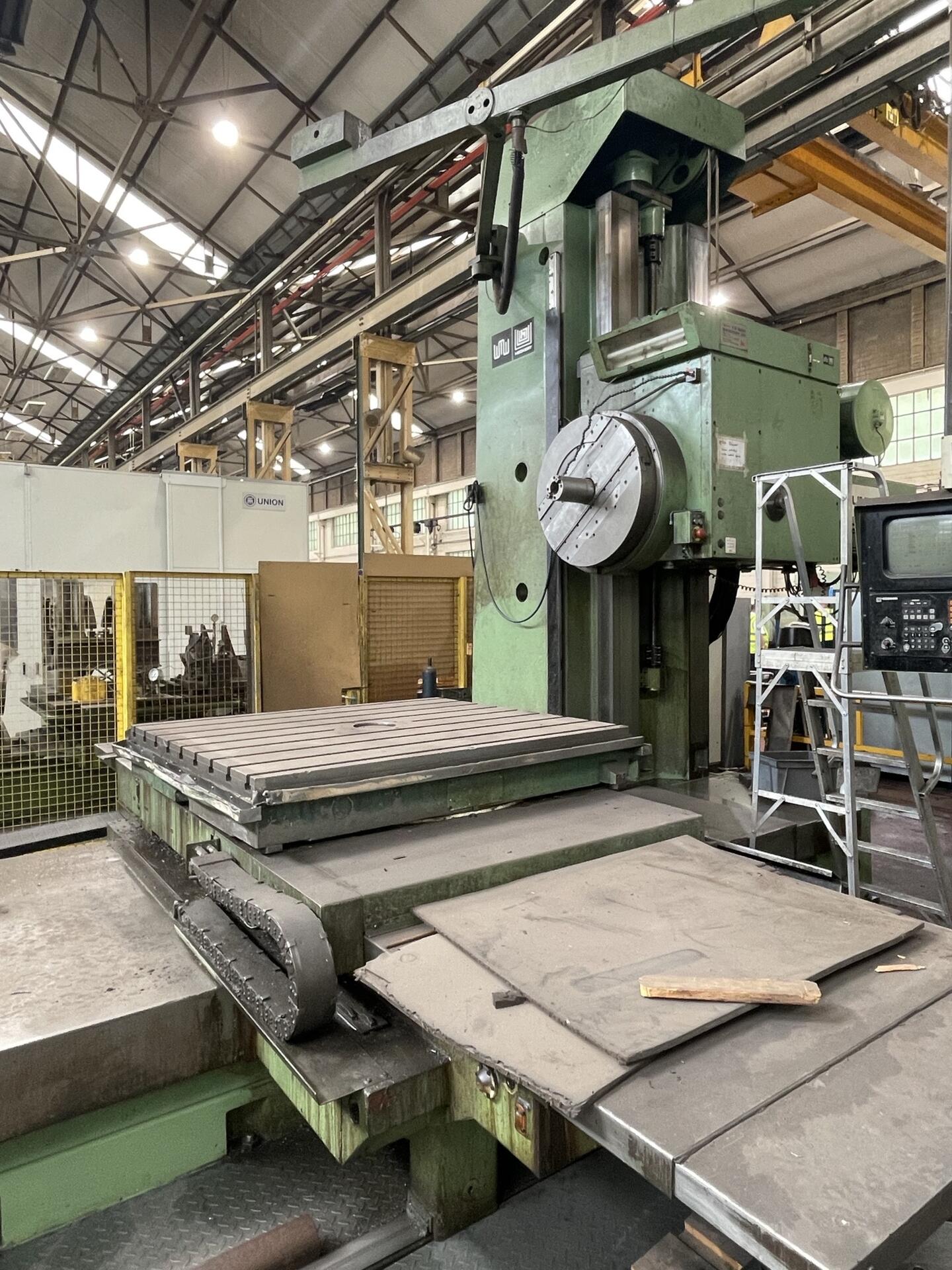

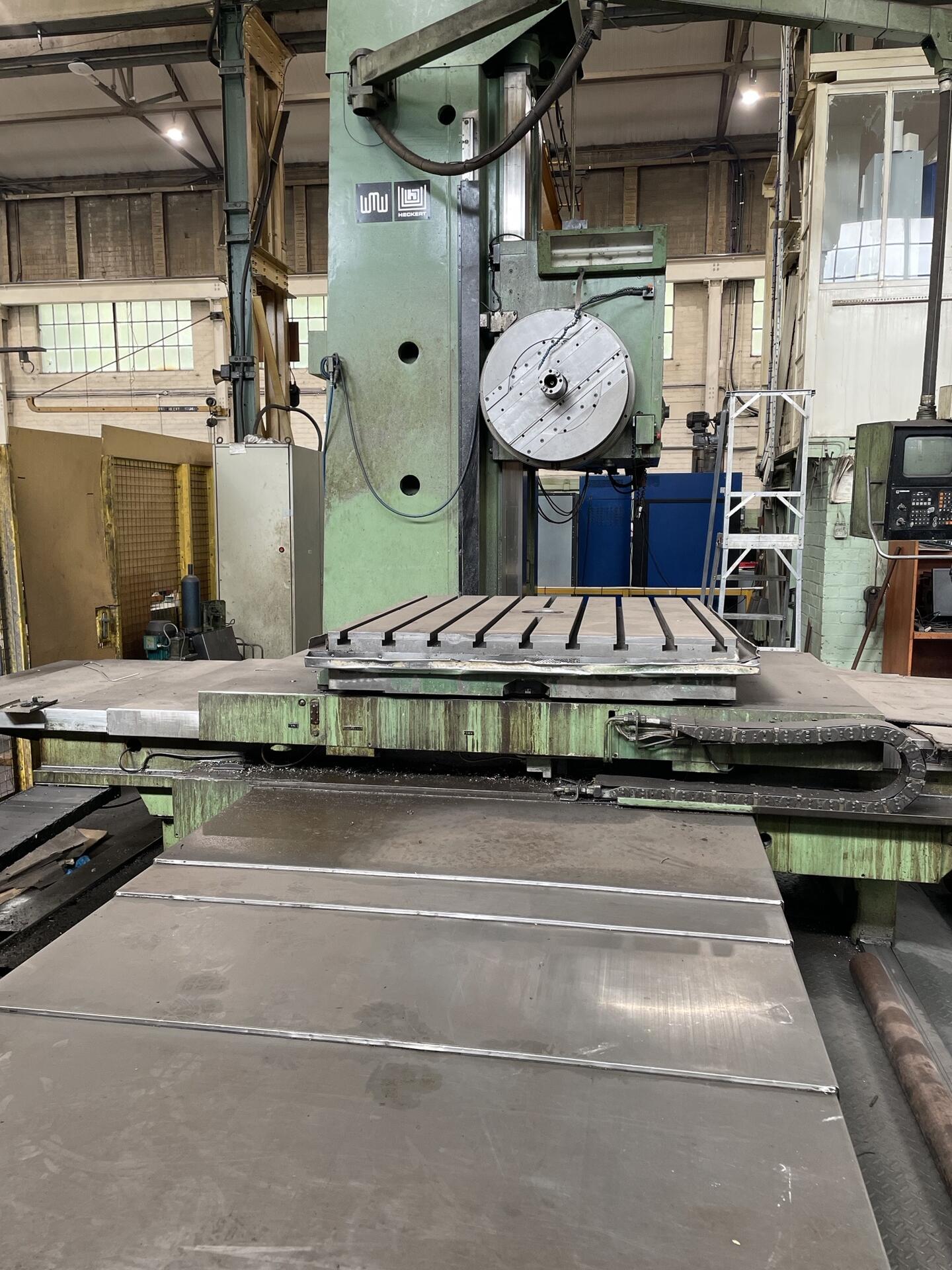

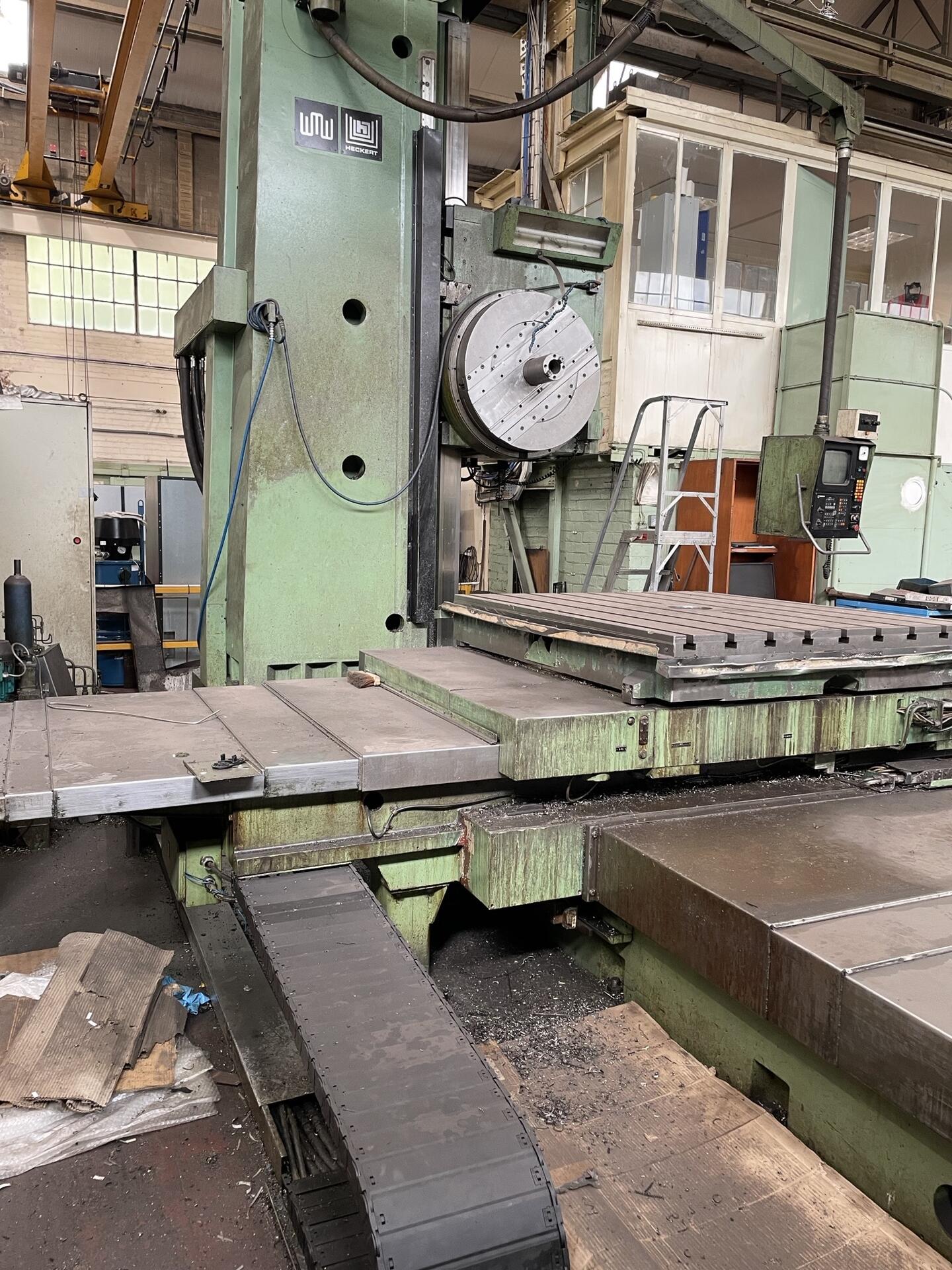

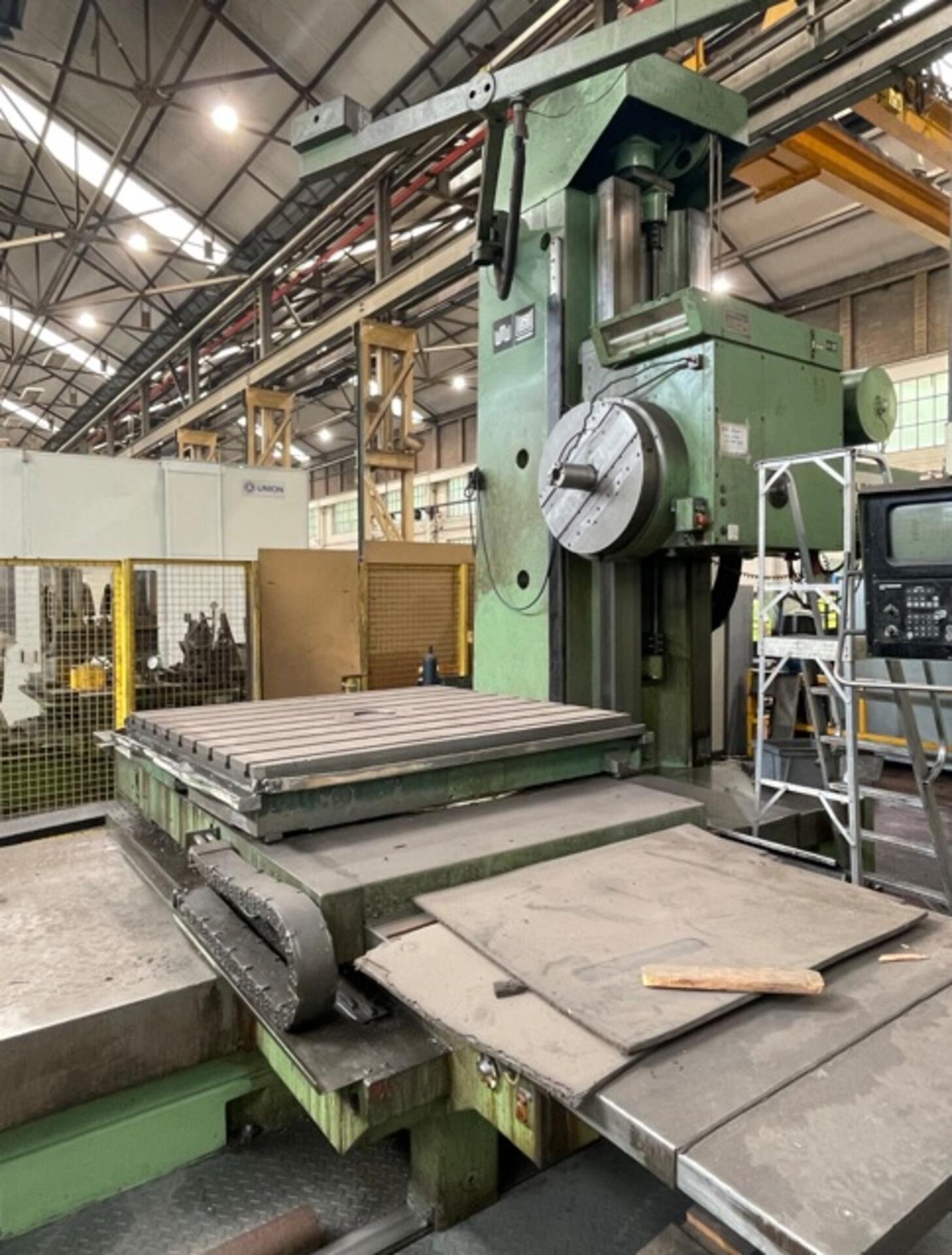

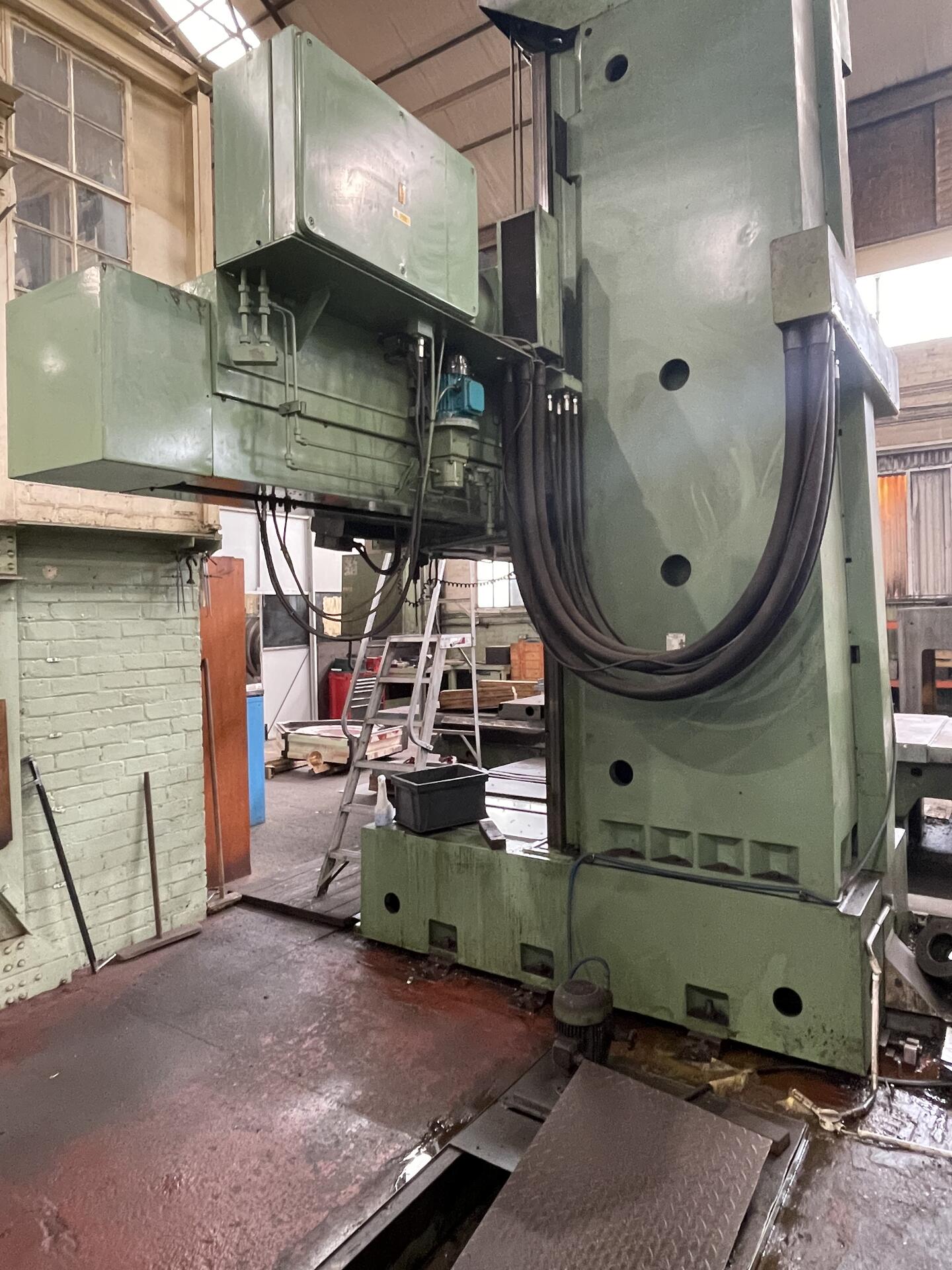

Union BFT 130 CNC Horizontal Borer

Code: ST4152

Union CNC Horizontal Borer



Model: BFT 130

Control: Heidenhain TNC 360



Table Area:1600 x 1400mm



Spindle Diameter:130mm

Spindle Taper:ISO 50

Spindle Speeds: 4.5 - 900 RPM



Facing Head Diameter: 800mm

Facing Head Speed:4.5 - 180 RPM



Cross Travel:2155mm

Long Travel:2131mm

Vertical:1940mm

Spindle Travel:760mm



Machine With:

360 Degree Rotation of table via Control
